LVPS/HVPS card assembly removal
1. Remove the cover extender (if installed).
2. Remove the rear cover. See “Rear cover removal”
on page 4-10 for more information.
3. Place the printer onto its top, with the back and bottom in view.

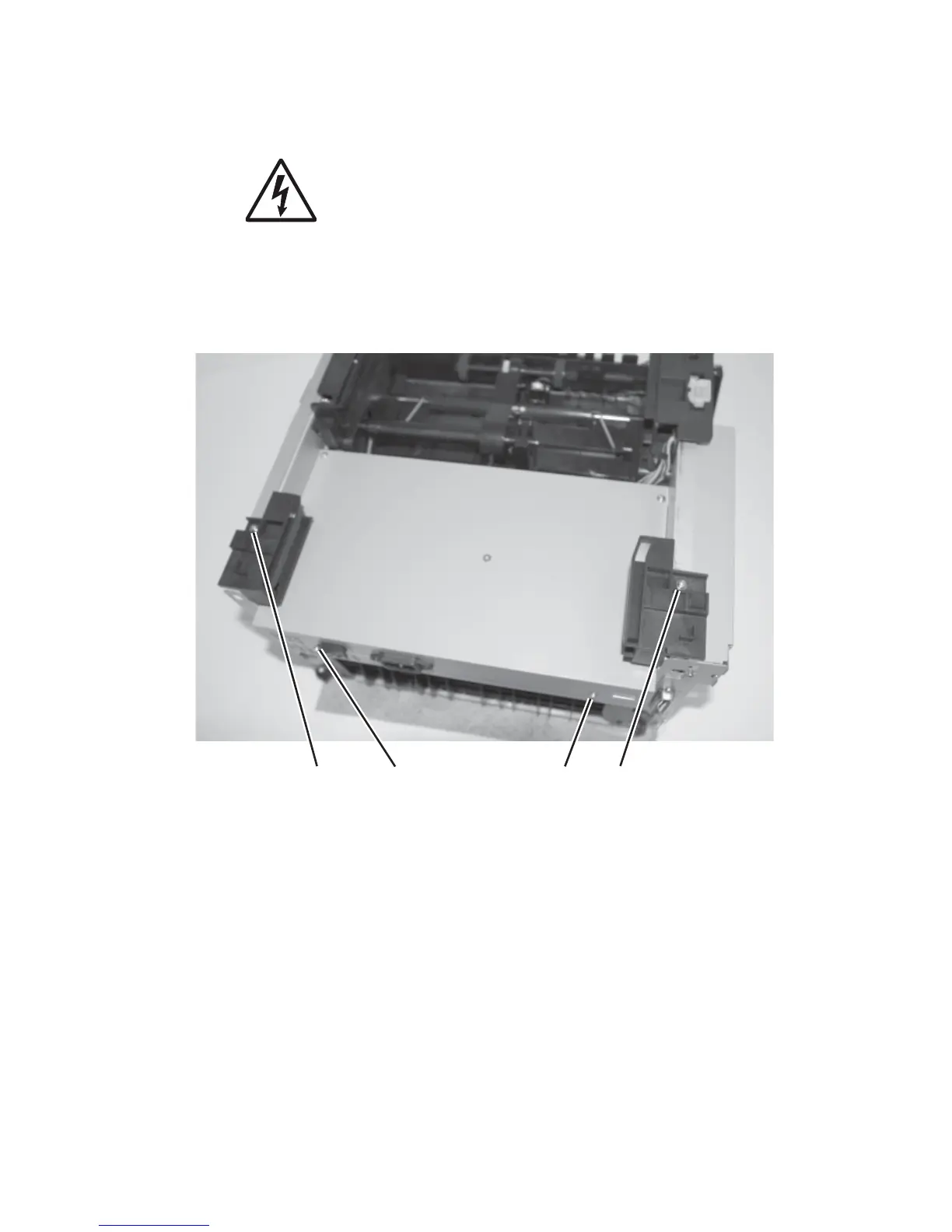

4. Remove two screws (A), one left of the power switch and the other at
the opposite side of the panel.
5. Remove the screws (B) securing the two foot brackets.
A
B
