4511-xxx
Repair information
4-43

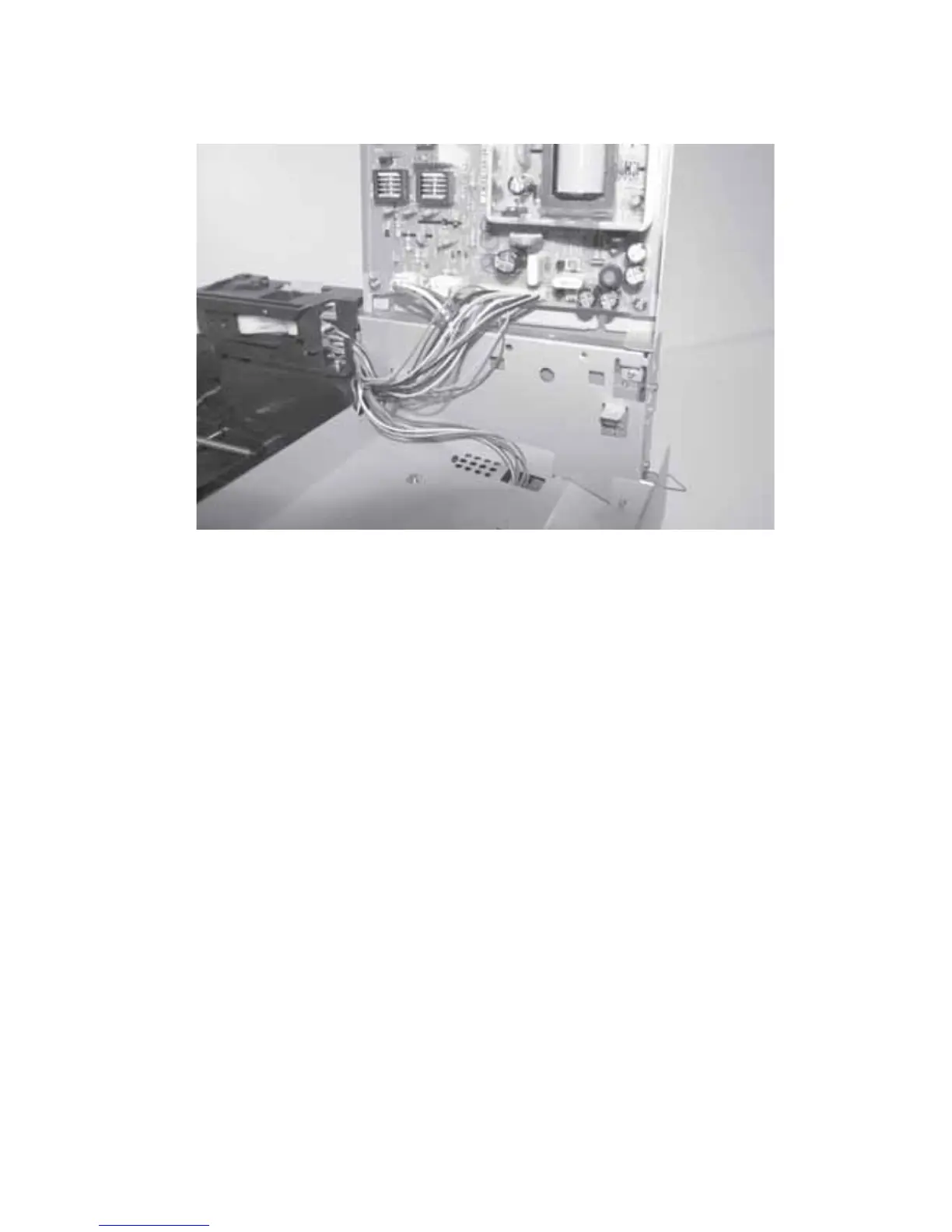

8. Rotate the assembly, and unplug the remaining cables.
9. Remove the assembly.
LVPS/HVPS–to–controller card cable removal
1. Remove the LVPS/HVPS card. See “LVPS/HVPS card assembly
removal” on page 4-41 for more information.
2. Unplug the cable at J4 on the controller card and at CN201 on the
LVPS/HVPS card, and extract the cable.
