Lexmark E240n

4511-xxx
Parts catalog
7-7
Assembly 3: Frame
Asm-
Index
Part
number
Units/
mach
Units/
FRU
Description
3–1 40X1334 1 Paper exit guide assembly
2 40X1322 1 Transfer roll, bearings, gear, spring
3 40X1321 1 Legal-size paper extender cover
3 40X1347 1 Legal-size paper extender cover
(white)

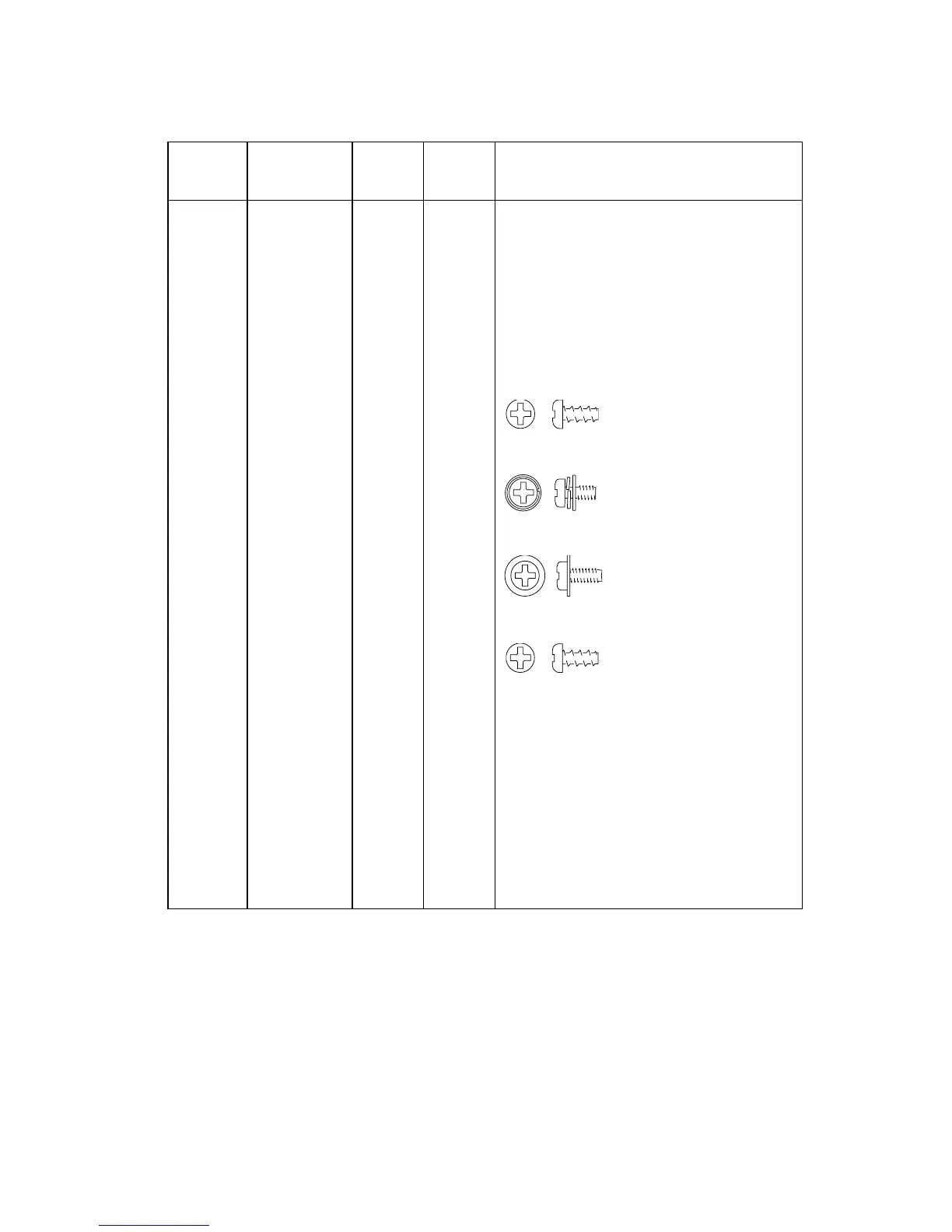

4 40X1353 N/A Screws, miscellaneous (actual size)
TP2NC-3.0+6P-Ni (2)
M3.0*0.5+6P-Ni,2 Washer (2)
MT3.0*0.5+6PF-Ni (5)
TP2NC-3.0+6PF-Ni (4)
5 40X1319 2 Paper feed, rubber tires
6 40X1354 1 Front access door and ACM springs
7 40X1331 1 ACM clutch CBM
8 40X1338 1 Door-fuser idle gear link CBM
9 40X1330 1 Manual feed clutch CBM
10 40X1355 2 Plastic snap rings
11 40X1329 1 Developer drive coupling assembly
12 40X1337 1 Front access cover latch CBM
