3-6 Service Manual

4500–E320/E322

Normal printing mode

1. Turn the printer on.

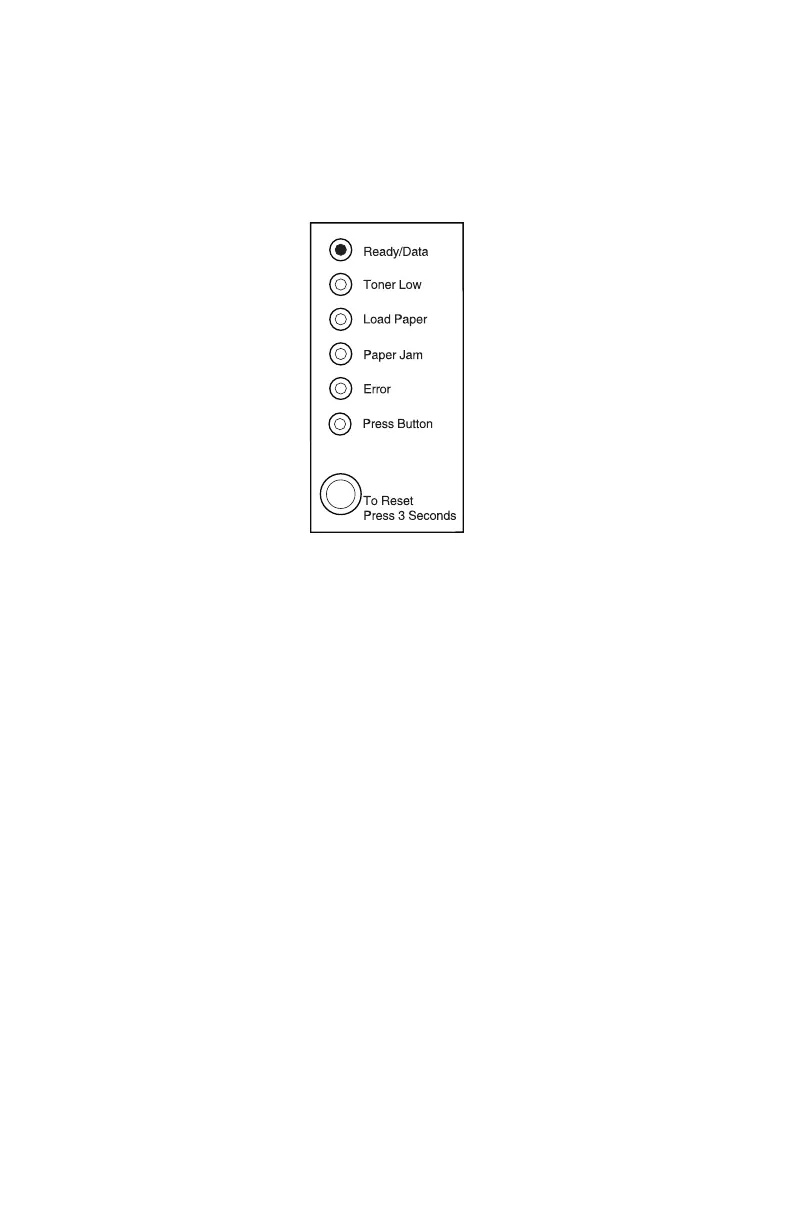

2. Verify the operator panel Ready light is on.

The printer is ready for normal operation.
