2-2 Service Manual
4500–E320/E322
If a service error code appears while working on the machine, go to
the “Service error codes ” on page 2-11 and take the appropriate
action.

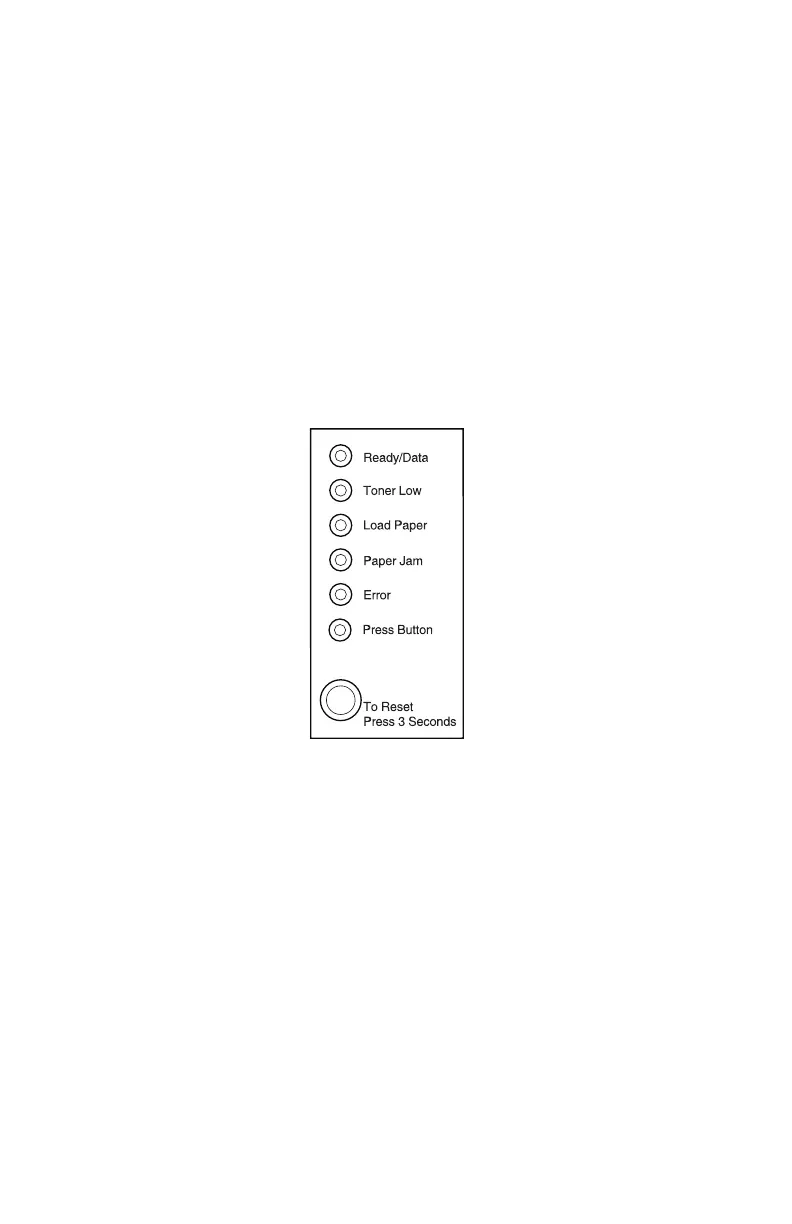

Operator panel
The E320/E322 operator panel consists of six indicator lights and
one button. The information provided by the six lights is classified
into three groups:
• Status
• Attendance
• Service
Depending on the light sequence, briefly (approximately one
second) push the operator panel button to restart the printer, display
an error code, or activate other printer functions.
The operator panel light table (see page 2-3) can be used to
determine the type of message displayed based on which
combination of lights are on or flashing.
