4-26 Service Manual
4025-XXX
Tray 1 & Tray 2 Front Chute Assemblies
Removal
1. Remove either Paper Tray 1 or Paper Tray 2.

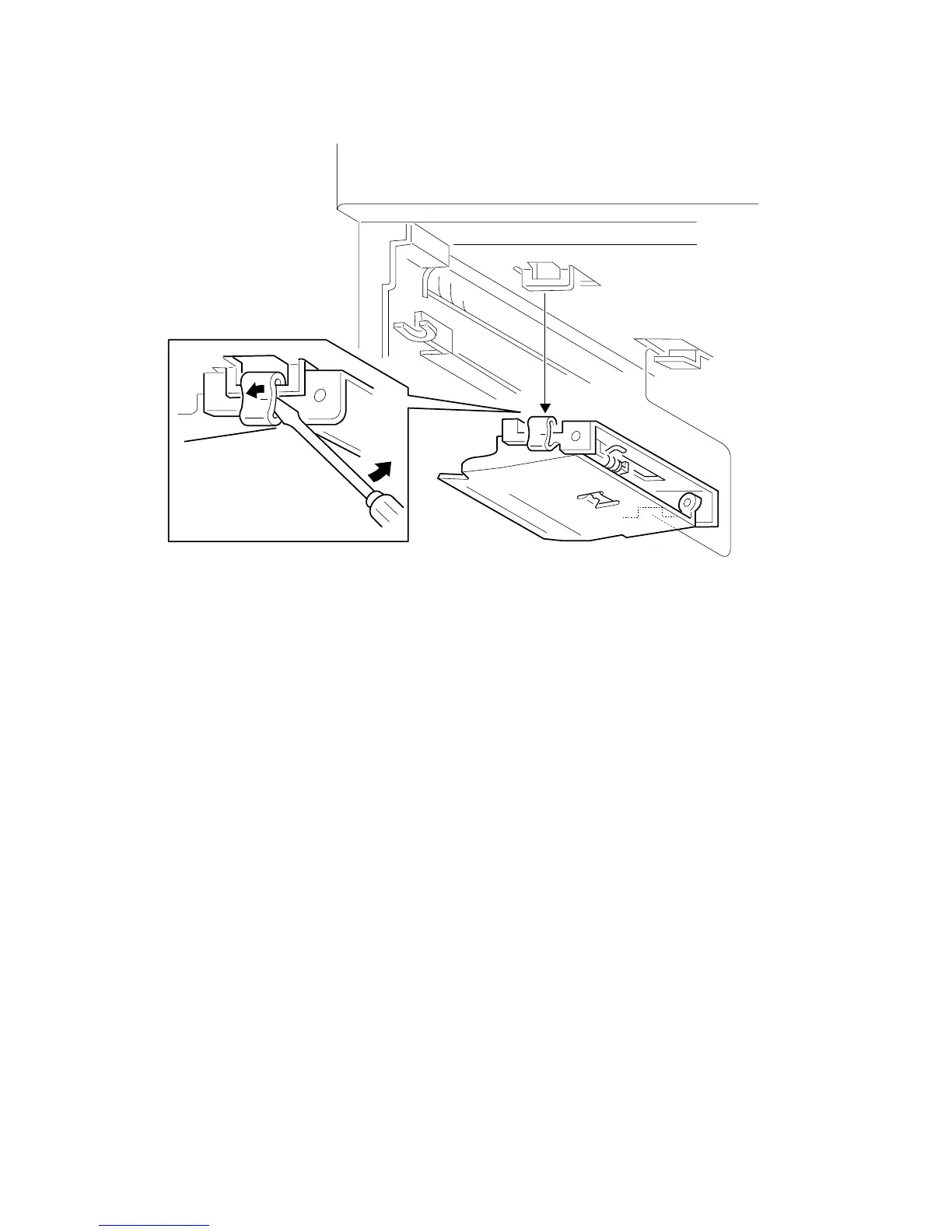

2. Use a flat blade screwdriver to unhook the front of the Chute, and remove the Chute.
Replacement
1. Remove either Paper Tray 1 or Paper Tray 2.
2. Reinstall the Chute by sliding the opening in the rear of the Chute into the tab on the
printer frame, then hooking the tab at the front of the Chute into the opening on the
frame.
3. Reinstall the Paper Tray.
