Lexmark X820E - Face up Exit Sensor

Repair Information 4-77
4025-XXX

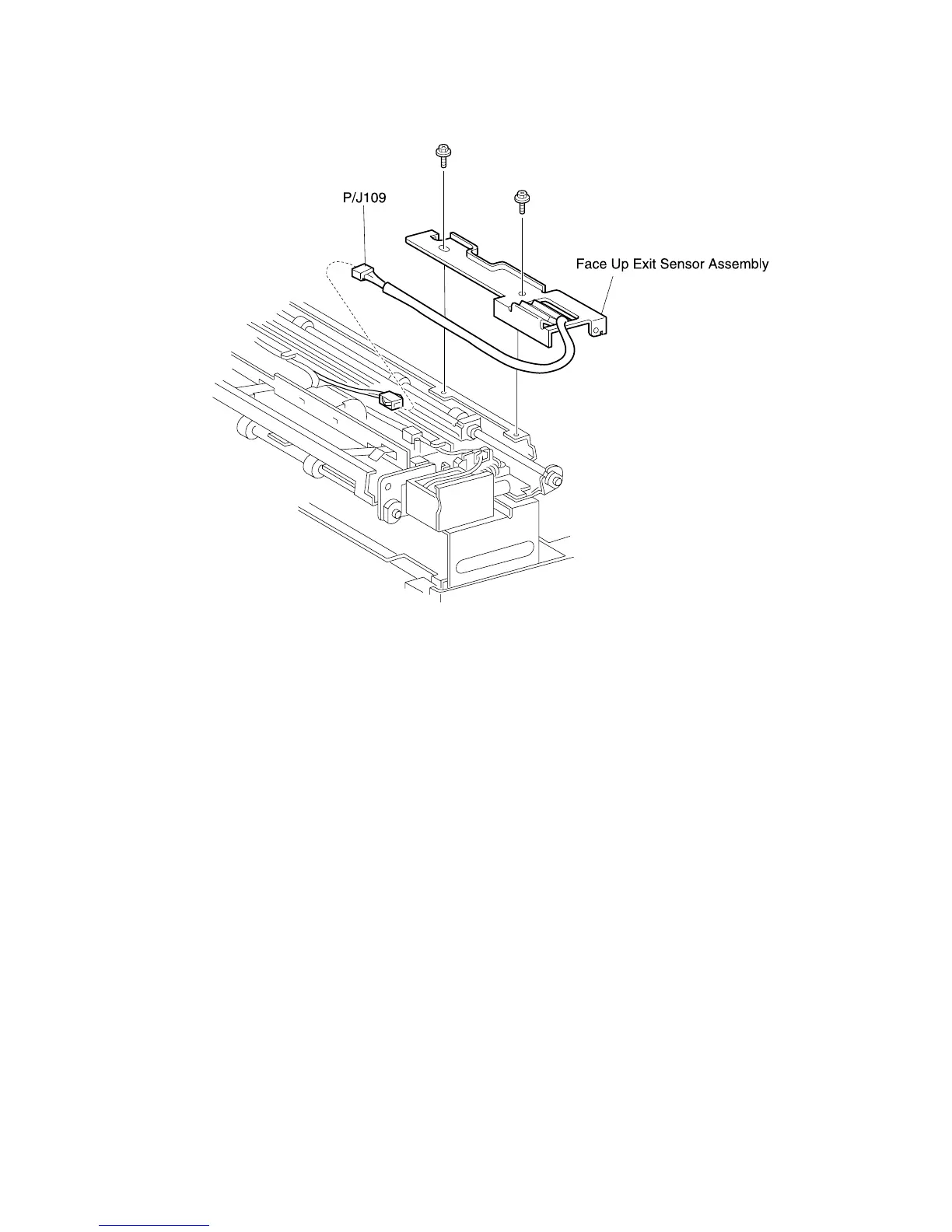

Face Up Exit Sensor
Removal
1. Remove the Fuser Full Cover.
2. Disconnect P/J109.
3. Remove the two screws securing the Face Up Exit Sensor Assembly to the Exit
Sensor Bracket and remove the Assembly.
Replacement
1. Reinstall the Face Up Exit Sensor Assembly onto the Bracket and use two screws to
secure the Assembly.
2. Reconnect P/J109.
3. Reinstall the Fuser Full Cover.
