General Information 1-29
4025-XXX

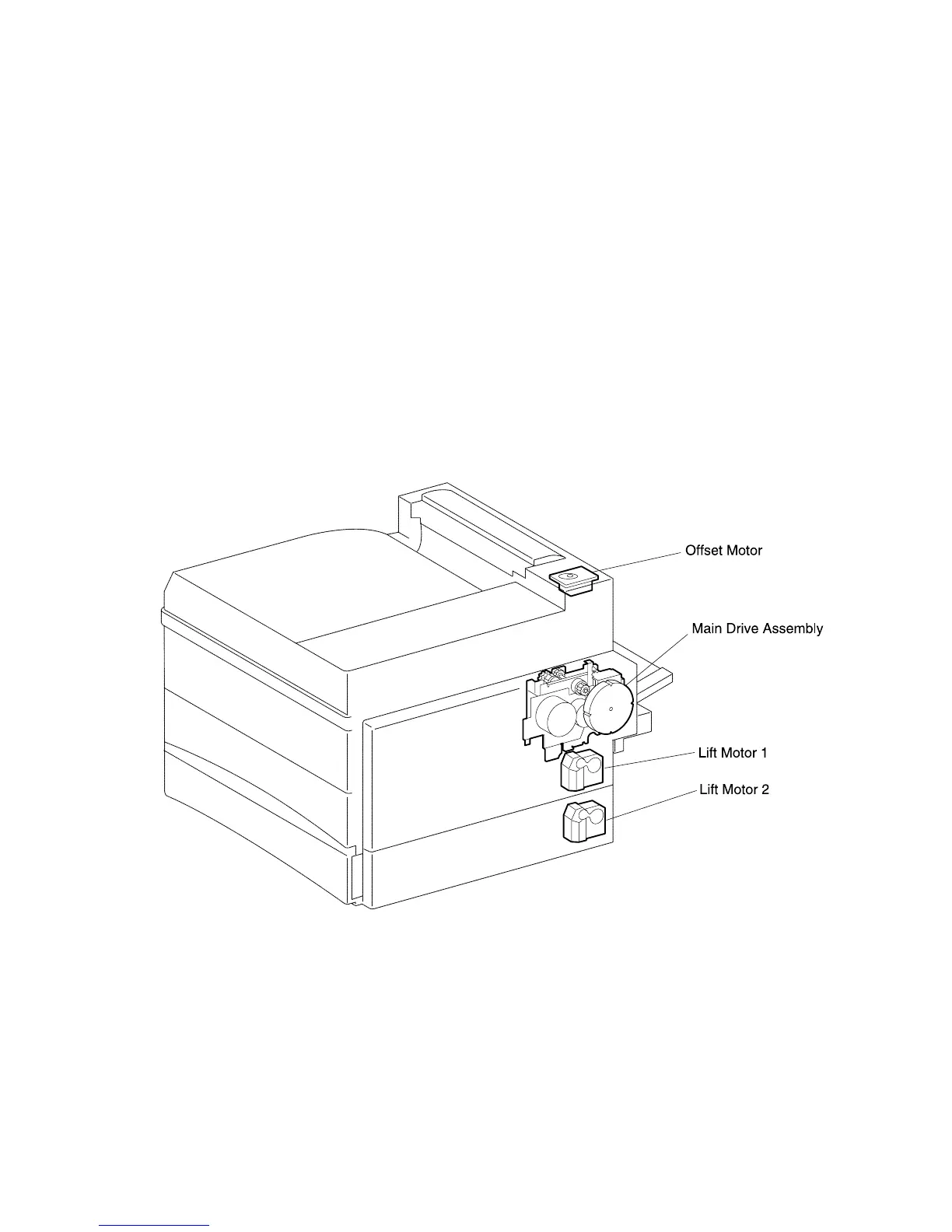

Mechanical Drive Components
The mechanical drive is made up of the four major components.
1. Offset Motor
A +24VDC motor.
2. Main Drive Assembly
Contains the +24VDC Main Drive Motor, the +24VDC Drum Motor, and the Main
Drive Assembly gears. The Main Motor and Drum Motor are attached to the Main
Drive Assembly.
3. Lift Motor 1
A +24VDC motor that raises Tray 1 bottom plate.
4. Lift Motor 2
A +24VDC motor that raises Tray 2 bottom plate.
