Lexmark X820E - Mechanical Drive for the Fuser Assembly

General Information 1-65
4025-XXX

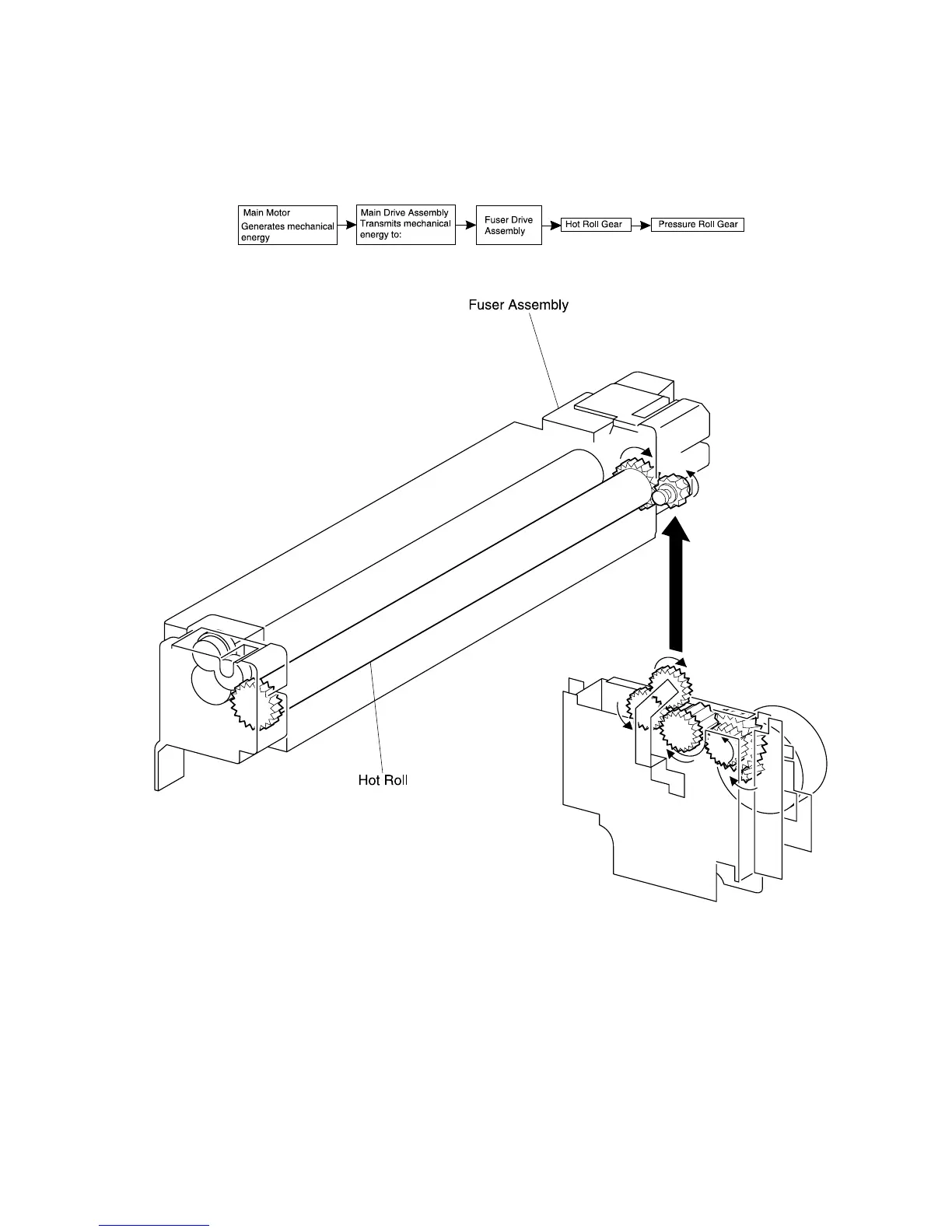

Mechanical Drive for the Fuser Assembly
The Main Drive Motor, the Main Drive Assembly, and the Fuser Drive Assembly
provide the mechanical drive for the Fuser Assembly.
The Main Drive Assembly transmits drive to the Fuser Drive Gear.
