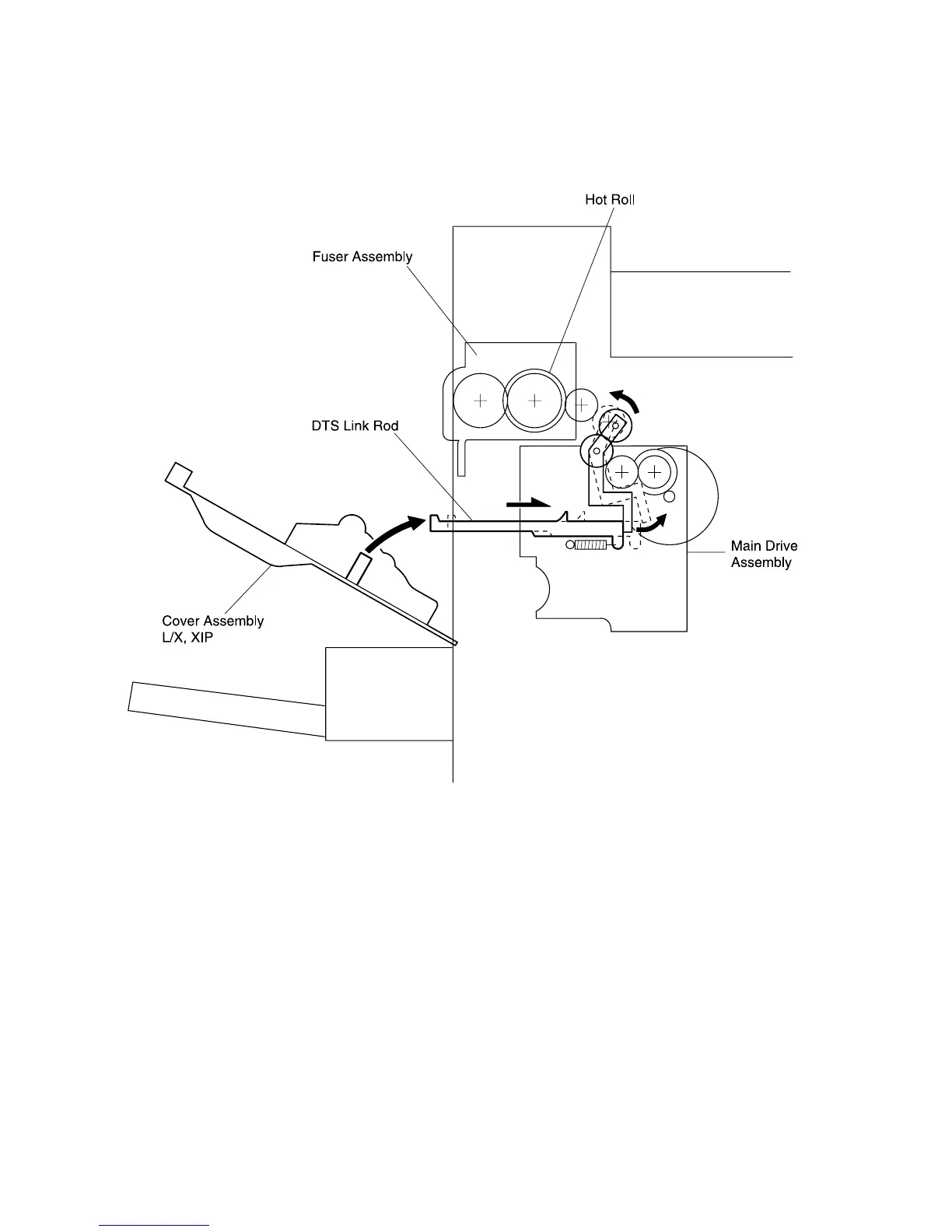

When the Left Upper Cover is closed, the DTS Link Rod pushes the Fuser Drive
Assembly into contact with the Fuser Drive Gear, which transmits drive to the Hot Roll
Gear. The Hot Roll rotates and transmits drive through a Pressure Roll Gear to the
Pressure Roll.
