4-40 Service Manual
4025-XXX
MP Feeder Assembly
Removal
1. Face the left side of the printer.

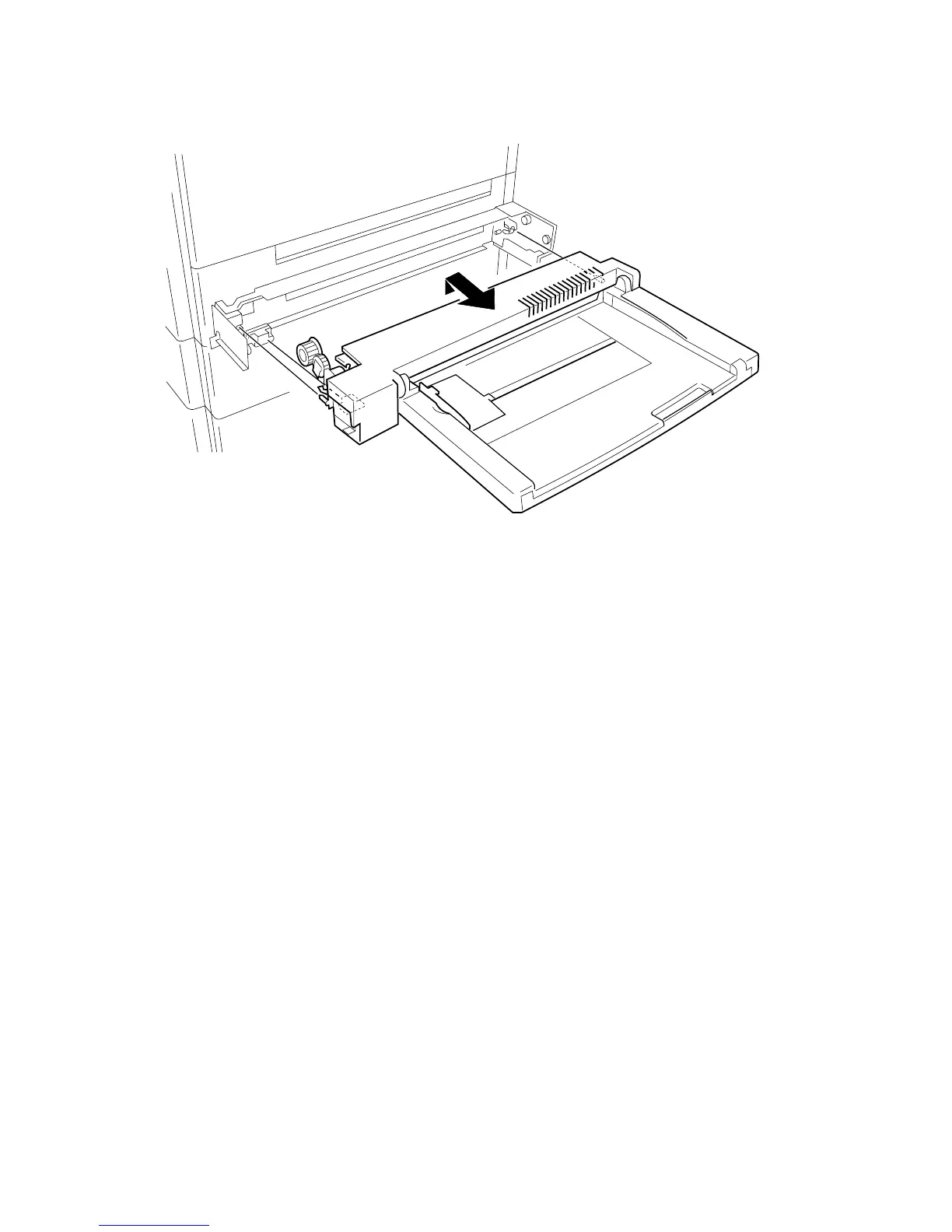

2. Hold both sides of the MP Feeder Assembly and firmly pull the Assembly toward you
and out of the printer.
Replacement
1. Face the left side of the printer.
2. Position the MP Feeder against the MP Feeder Support.
3. Tilt the MP Feeder so the Feed Gear slides through the cutout in the printer cover.
4. Hold the MP Feeder Assembly level and push the Assembly against the printer.
To Next Page
