General Information 1-39
4025-XXX

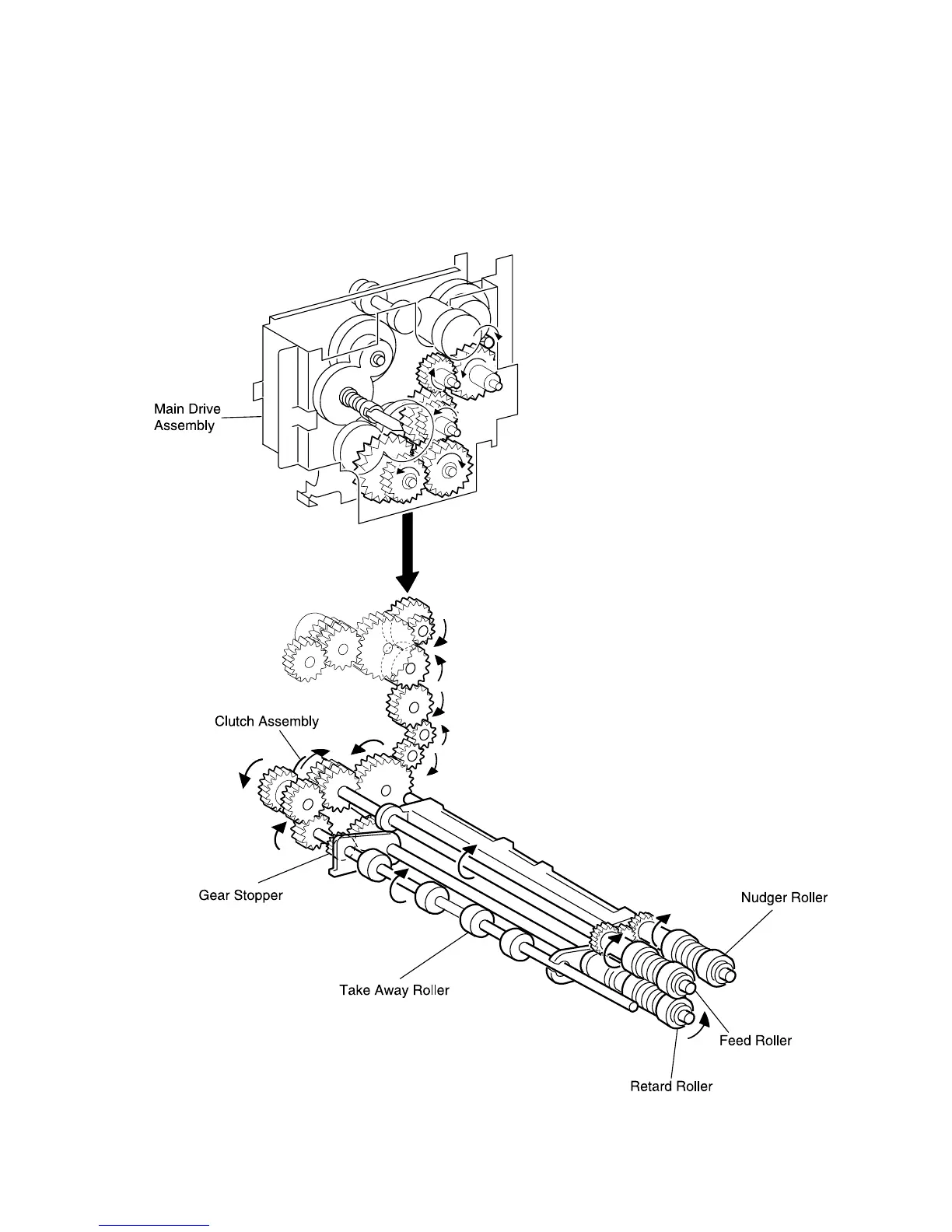

Mechanical Drive for Paper Fed from Tray 2
The Main Motor provides mechanical drive for Tray 2 feed. The Drive Assembly transmits
drive to Tray 2 Feed Clutch. Tray 2 Feed Roll and Nudger Roll are attached to the Feed
Clutch. At paper feed, the MCU switches on the Tray 2 Feed Clutch. The Feed Clutch
transmits drive to the Feed Roll, which rotates and begins feeding a single sheet of paper
out of Tray 2.
