1-58 Service Manual
4025-XXX

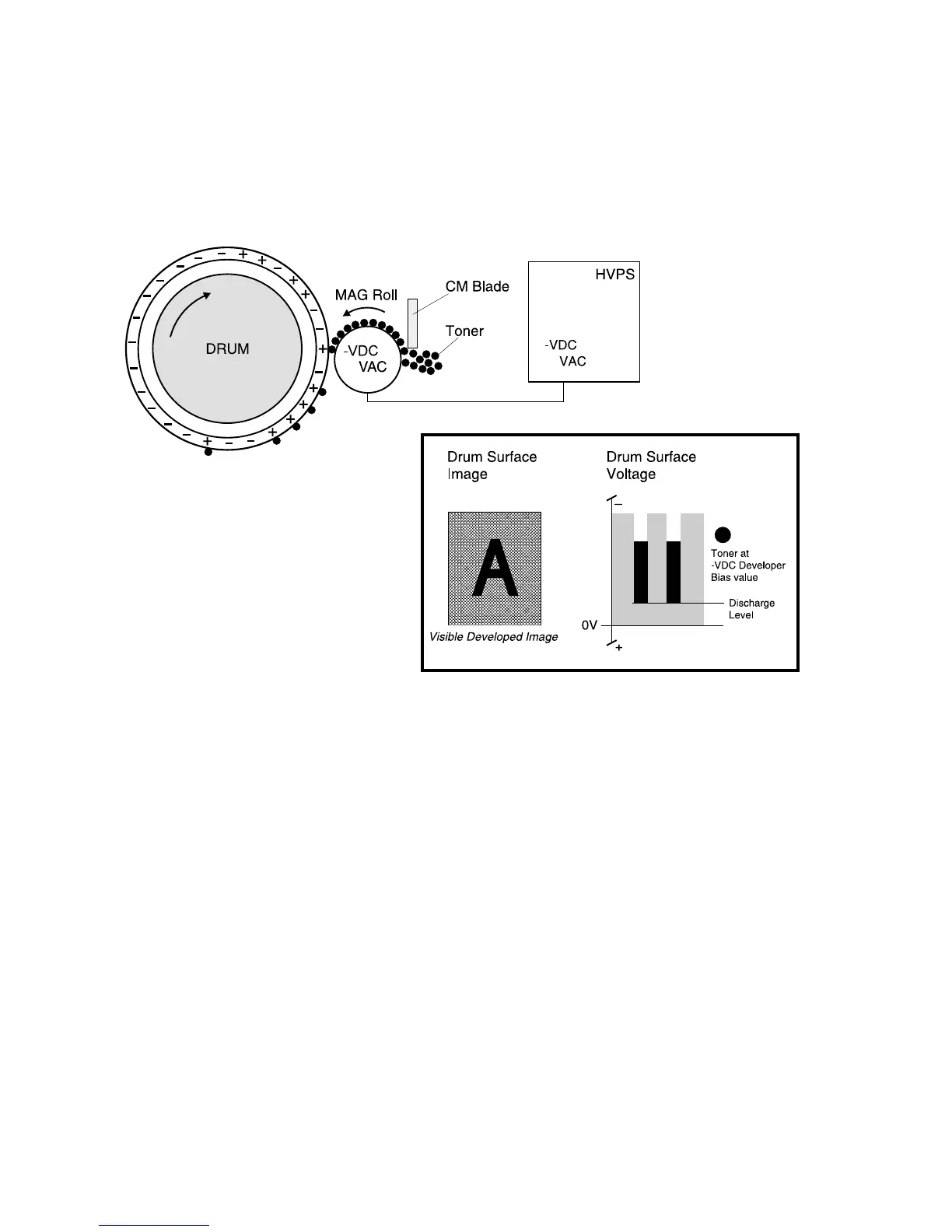

The toner adhering to the Magnet Roll is always in contact with the drum surface.
When a less negative point on the drum (a discharged area) comes in contact with
the more negative charged toner on the Magnet Roll, toner transfers from the
Magnet Roll to that point on the drum. There is now a visible toner image on the
drum surface. The image is called a developed image.
