LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
37
Installation

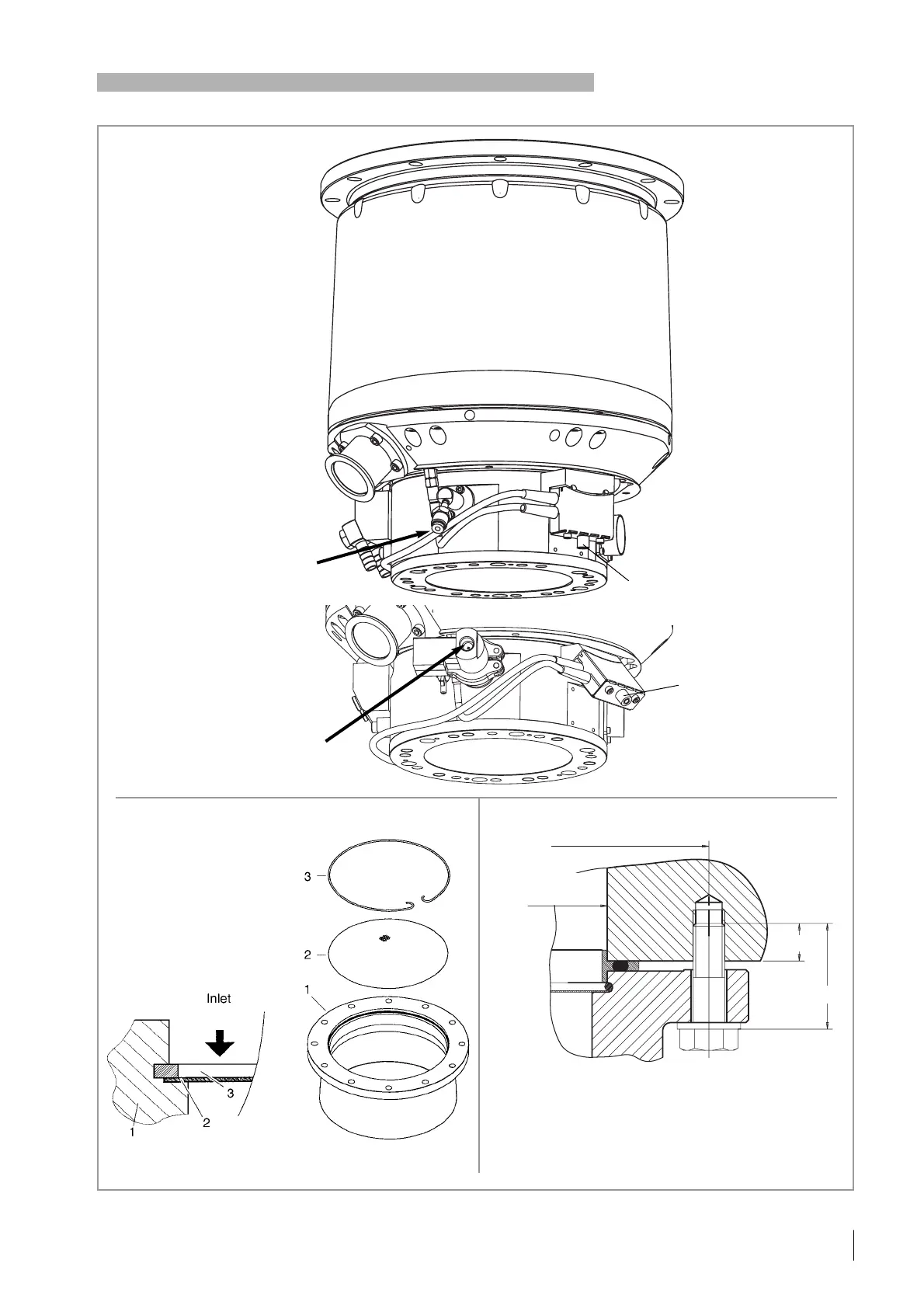

Fig. 23 Connection elements, installing the splinter guard and fixing the intake flange for the MAG W 2200 C
Forevacuum flange
Purge gas in
High-vacuum flange
DRIVE/BEARING
connection
PK connection
Cooling water
connection
12 bolts M10 x 35
Installation torque per bolt 35
+5
Nm
Bolt quality:12.9 according to EN ISO 898-1
with coating
0,2% yield strength > 1080 N/mm
2
14 mm
35 mm
MAG W 2200 C
1 Housing
2 Splinter guard
3 Ring
DN 200: 213 mm
DN 250: 261 mm
DN 200: 260 mm
DN 250: 310 mm
Purge gas in
DRIVE/BEARING
connection
PK connection
Cooling water
connection
