4. Operating AC Smart

Installation/Owner's Manual

4-131

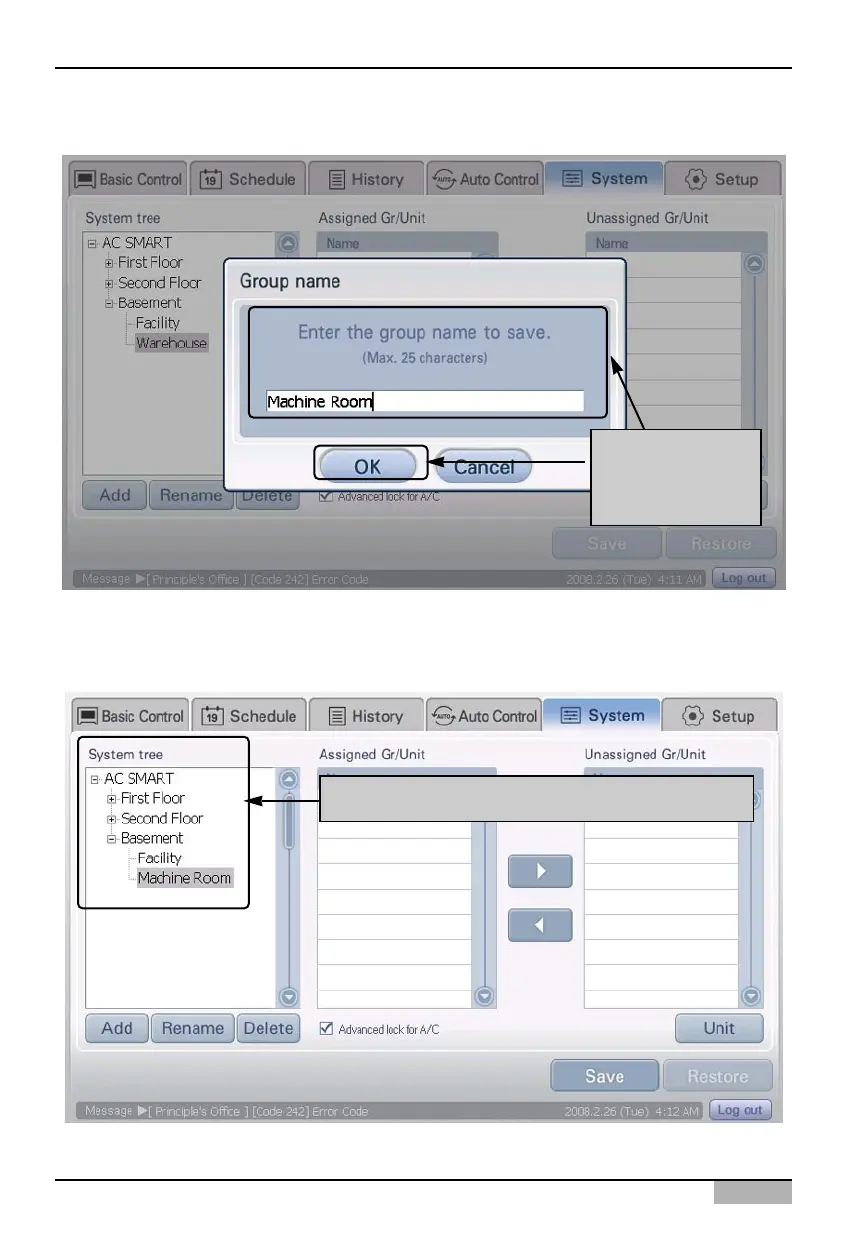

3. After renaming the group, click on the [OK] button.

4. Check whether the name of the applicable group has been renamed in the 'System tree'.

After renaming

group

click on [OK]

button

Check whether the group has been renamed
