LG SV-iS5 User Manual

Chapter 6 - Parameter Description [I/O]
121
[Speed-L, Speed-M, Speed-H]
By setting P1, P2, P3 terminals to ‘Speed-L’, ‘Speed-M’
and ‘Speed-H’ respectively, inverter can operate at the
preset frequency set in DRV-05 ~ DRV-07 and I/O-20 ~
I/O-24.
The step frequencies are determined by the combination
of P1, P2 and P3 terminals as shown in the following
table.
Step
Frequency
Parameter
Code
Speed-H
(P3)
Speed-M
(P2)
Speed-L
(P1)
Step Freq-
0
DRV-00 0 0 0
Step Freq-
1
DRV-05 0 0 1
Step Freq-
2
DRV-06 0 1 0
Step Freq-
3
DRV-07 0 1 1
Step Freq-
4
I/O-21 1 0 0
Step Freq-
5
I/O-22 1 0 1
Step Freq-
6
I/O-23 1 1 0
Step Freq-
7
I/O-24 1 1 1
0: OFF, 1: ON
☞ I/O-20 [Jog Frequency] can be used as one of the step
frequencies.
☞ If the ‘Jog’ terminal is ON, inverter operates to Jog
frequency regardless of other terminal inputs.

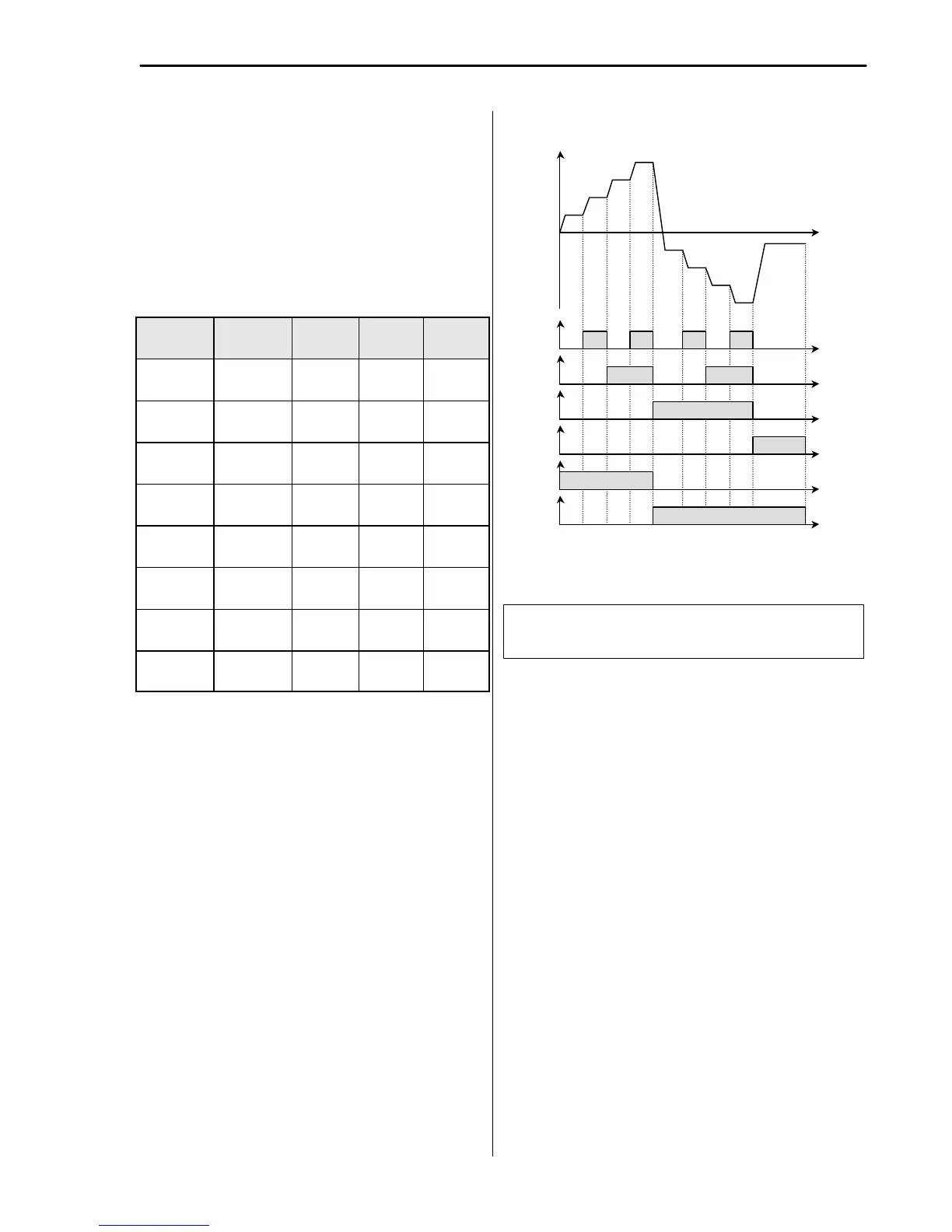

[Multi-Step Frequency Operation]
☞ Note: The frequency for ‘Speed 0’ is determined by DRV-
04.
P1-CM
ON
ON
Output Frequency
Time
Time
P2-CM
ON
ON
Time
P3-CM
ON
Time
JOG-CM
ON
Time
FX-CM
O
N
Time
RX-CM
ON
Time
ON
ON
Step
0
Step
1
Step
2
Step
3
Step
4
Step
5
Step
6
Step
7
Jog
Related Functions:
DRV
-
05 ~ DRV
-
07 [Step Frequency]
I/O-20 [Jog Frequency]
I/O-20 ~ I/O-24 [Step Frequency]
