Chapter 1
–
Installation
8
1.5

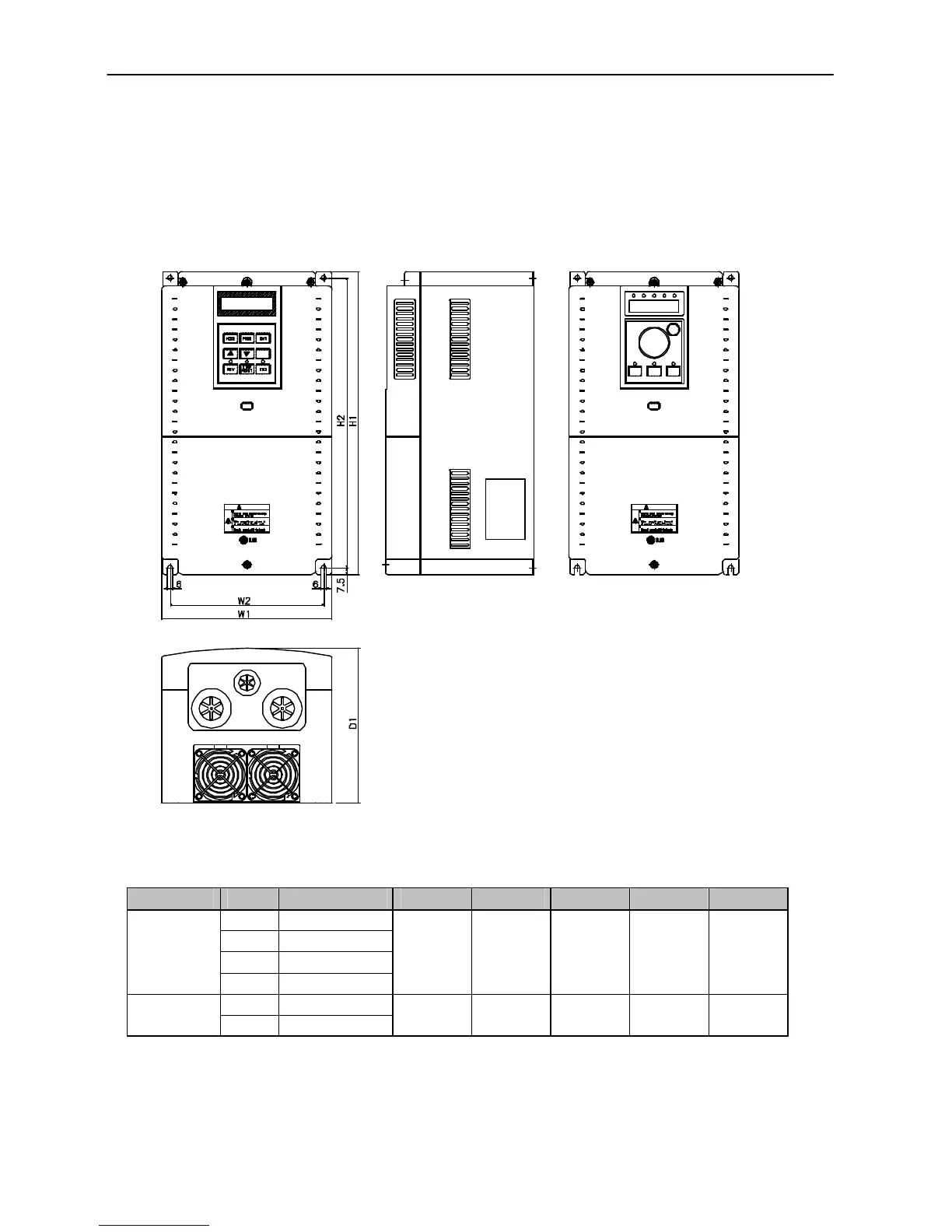

Dimensions
n
Frame # 1
: 1 ~ 5 HP
n
Frame # 2
: 7.5 ~ 10 HP
iS5
VARIABLE FREQUENCY DRIVE
Risk of Injury or Electric Shock
Risk of Electric Shock
Risk of Electric Shock
WARNING
VARIABLE FREQUENCY DRIVE
Risk of Injury or Electric Shock
Risk of Electric Shock
Risk of Electric Shock
WARNING
ESC
SHIFT
LC-200
iS5
EXT
RUN
ESC
SHIFT
FU2
FU1
DRV
ENT
PROG
RESET
STOP
LE-200
I/O
mm (inches)
Frame
HP
Model Number
W1
W2
H1
H
2
D1
1
SV008iS5
-
2/4
2
SV015iS5
-
2/4
3
SV022iS5
-
2/4
Frame # 1
5
SV037iS5
-
2/4
150
(5.91)
130
(5.12)
284
(11.18)
269
(10.69)
156.5
(6.16)
7.5
SV055iS5
-
2/4
Frame # 2
10
SV075iS5
-
2/4
200
(7.87)
180
(7.09)
355
(13.98)
340
(13.39)
182.5
(7.19)
