LG SV-iS5 User Manual

Chapter 2 - Operation
28

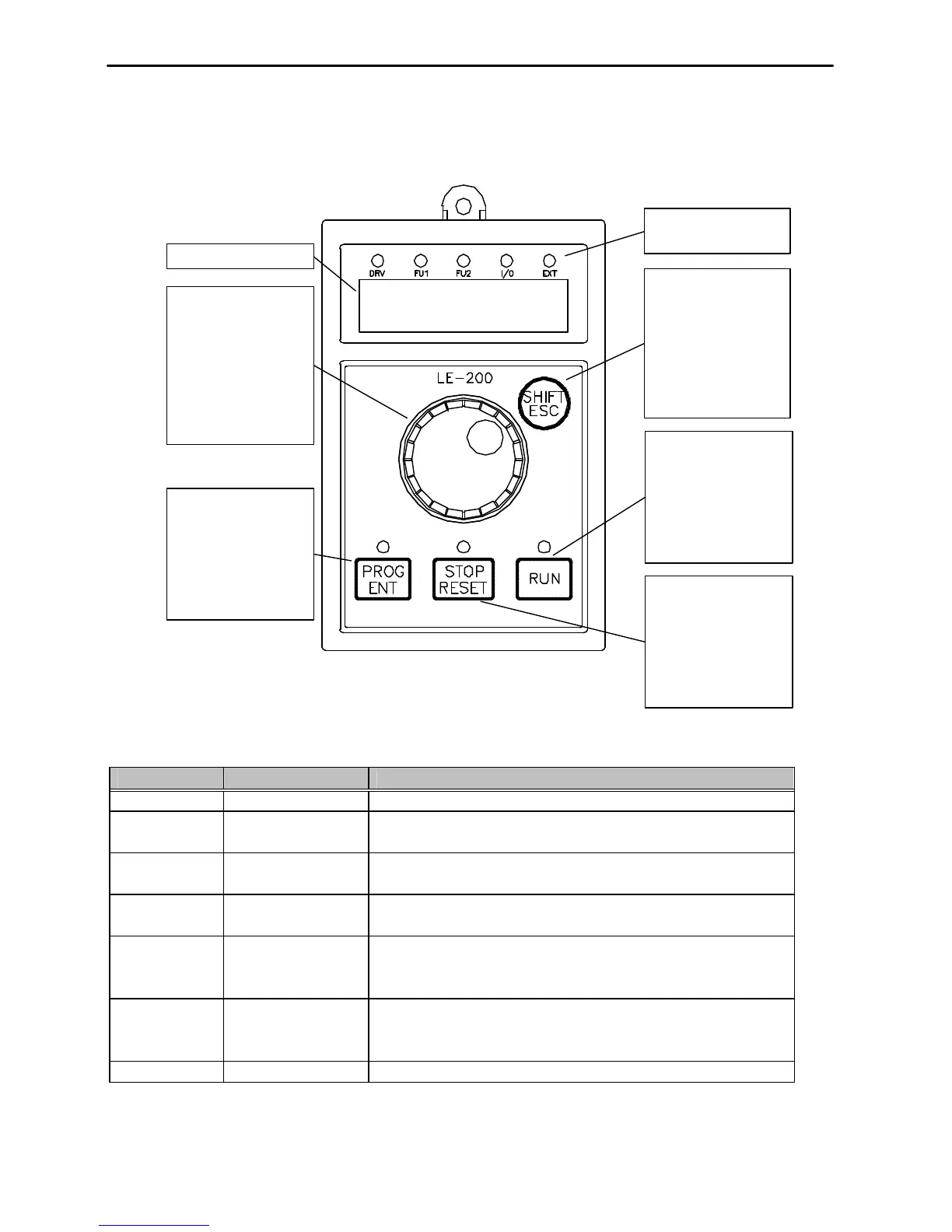

2.3 7-Segment Keypad
* Parameter Group Display LEDs – When parameter code is located on DRV 20, DRV 21, DRV 22 and DRV 23, respectively by
rotating the encoder knob, the parameter group display LEDs of DRV, FUN1, FUN2, I/O, EXT blink.
LED Parameter Group Description
DRV Drive Group Lit in Drive group.
FU1 FUNCTION 1 Group
Blinks when the parameter code is located on DRV 20 [FUN1].
Lit when FUNCTION 1 group is selected.
FU2 FUNCTION 2 Group
Blinks when the parameter code is located on DRV 21 [FUN2].
Lit when FUNCTION 2 group is selected.
I/O Input/Output Group
Blinks when the parameter code is located on DRV 22 [I/O].
Lit when Input/Output group is selected.
EXT Sub-Board Group
Blinks when the parameter code is located on DRV 23 [EXT].
Lit when Sub-Board group is selected.
This group appears only when a Sub-Board is installed.
I/O + EXT Option Group
Blinks when the parameter code is located on DRV 24 [EXT].
Lit when Option group is selected.
This group appears only when an Option Board is installed.
FU2 + I/O + EXT
Application Group Blinks when the parameter code is located on DRV 25 [FUN2].
7
-
segment display
Encoder knob
Used to move you
through parameter
groups and parameter
code. Also, used to
change data by rotating
knob.
Program Button
is used
to go into programming
mode to change data.
Enter Button is used to
enter the changed data.
The LED blinks during
programming mode.
[SHIFT]
This
button is
used to move cursor
across display in
programming mode.
[ESC]
This button is used
to move the program
code to DRV 00 from any
program code.
Run Button
is used to
run the drive. The motor
direction is set in DRV
13.
The Run LED blinks
when the drive Accels or
Decels.
Stop Button
is
used to
stop the drive from
running.
Reset Button is used to
reset Faults.
The LED blinks when
there is a fault.
* Parameter Group
Display LEDs.
