LG SV-iS5 User Manual

Chapter 4 – Quick start procedures
53

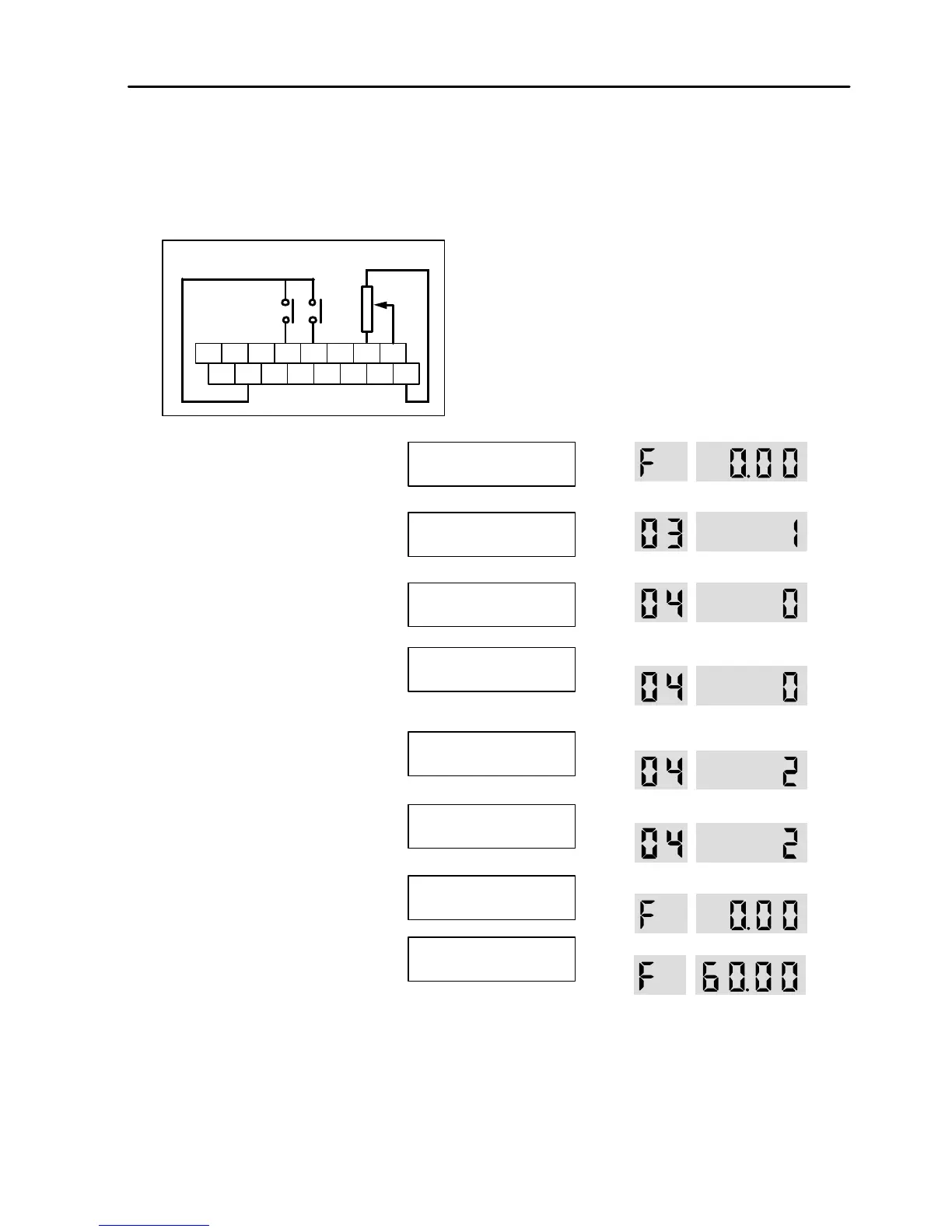

4.2 Operation using Control Terminals
1. Install a potentiometer on terminals
V1, VR, 5G and connect wiring as
shown below.
2. Apply AC power.
3. Confirm that the DRV 03 is set at
‘Fx/Rx-1’.
4. LCD: Press [? ] key to move DRV 04.
7-Seg: Rotate encoder knob until ‘04’
is displayed.
5. LCD: Press [PROG] key.
7-Seg: Press [PROG/ENT] key.
6. LCD: Press [? ] key and set at ‘V1’.
7-Seg: Rotate encoder knob and set
at ‘2’.
7. LCD: Press [ENT] key.
7-Seg: Press [PROG/ENT] key.
8. Press [SHIFT/ESC] key.
9. Set the frequency by rotating the
potentiometer.
10. Close the FX or RX contact to run the
motor.
11. Open the FX or RX contact to stop the
motor.
LCD Display 7-Segment Display
DRV ? T/K 0.0 A
00 STP 0.00Hz
The DRV LED is ON.
DRV ? Drive mode
03 Fx/Rx-1
DRV ? Freq mode
04 Keypad-1
DRV ? Freq mode
04 Keypad-1
DRV ? Freq mode
04 V1
DRV ? Freq mode
04 V1
DRV ? T/V 0.0 A
00 STP 0.00Hz
DRV ? T/V 0.0 A
00 STP 60.00Hz
The PROG/ENT LED is turned ON.
The PROG/ENT LED is turned ON.
The PROG/ENT LED is turned OFF.
The FWD or REV LED starts blinking.
The RUN LED starts blinking.
The STOP/RESET LED starts blinking.
The STOP/RESET LED starts blinking.
1㏀, 1/2 W
P1
P2
JOG
CM
P3
FX
RX
NC
CM
BX
RST
I
VR
VI
FM
5G
