Chapter 2
-
Operation
31

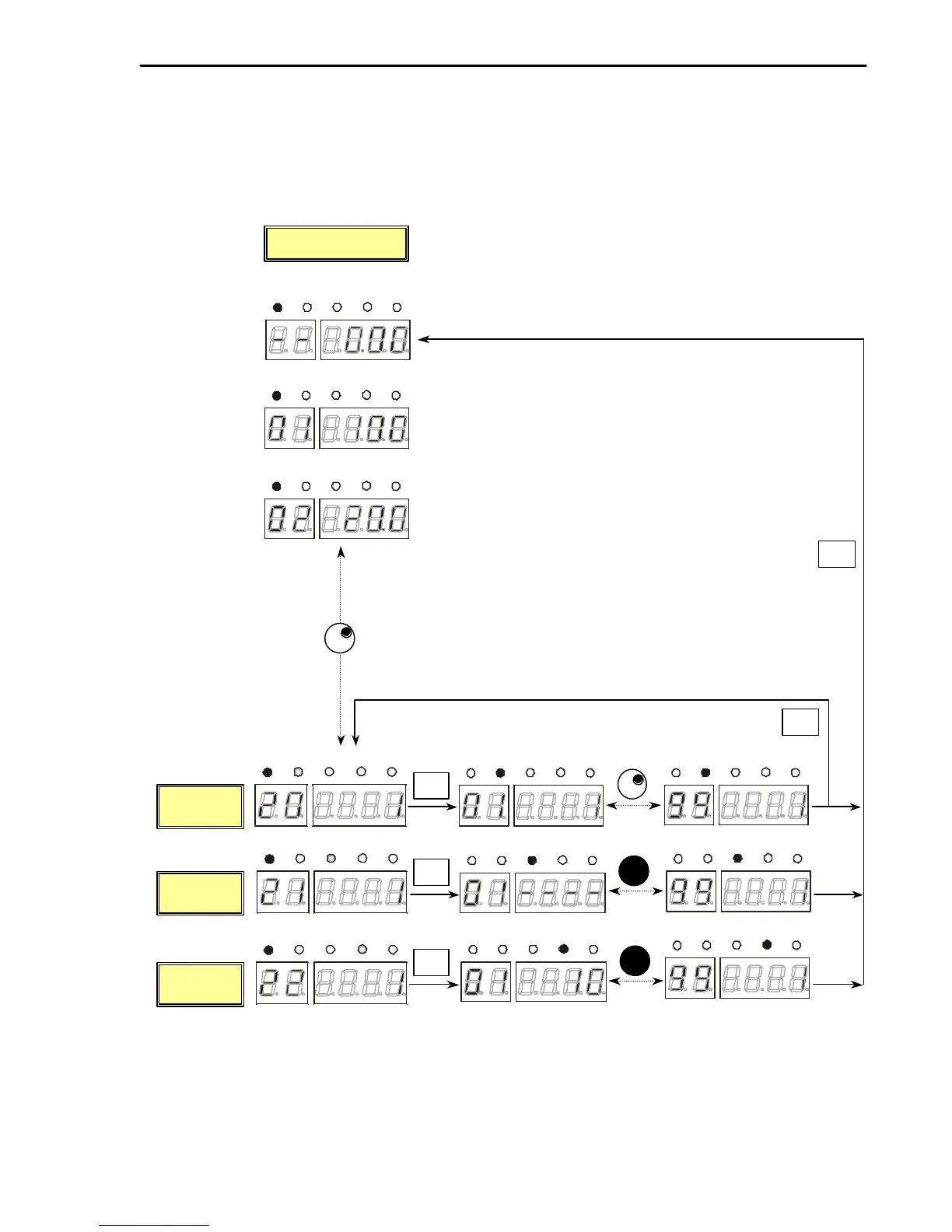

2.3.3
Parameter Navigation (7
-
Segment Keypad)
The parameter group moves directly to DRV group by pressing
[SHIFT/ESC]
key i
n any parameter code.
