LG SV-iS5 User Manual

Chapter 2 - Operation
24
2.2 LCD Keypad

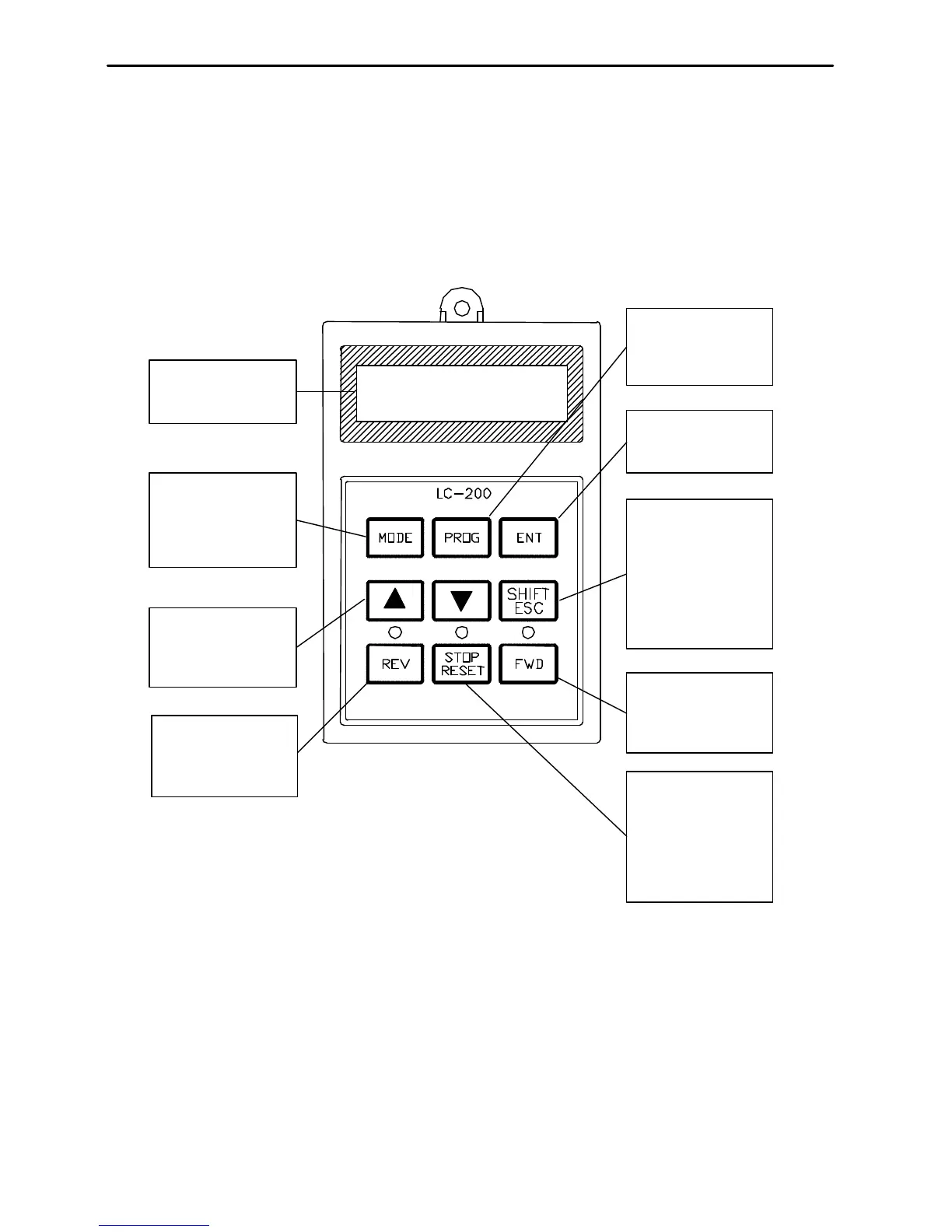

LCD keypad can display up to 32 alphanumeric characters, and various settings can be checked directly from the
display. The following is an illustration of the keypad.
32 character, back light,
LCD display. The back
light is adjustable.
The
Mode Button
moves
you through the seven
program groups: DRV,
FUN1, FUN2, I/O, (EXT),
COM, and APP
The
Up and Down
Arrows are used to
move through and
change data.
Reverse Run Button.
The Reverse Run LED
blinks when the drive
Accels or Decels.
The
Program Button
is
used to go into
programming mode to
change data.
The
Enter Button
is
used to enter changed
data within a parameter.
[SHIFT]
This button is
used to move cursor
across display in
programming mode.
[ESC]
This button is used
to move the program
code to DRV 00 form
any
program code.
Forward Run Button
The Forward Run LED
blinks when the drive
Accels or Decels.
Stop Button
is used to
stop the drive from
running.
The Reset Button is
used to reset Faults.
The LED blinks when
there is a fault.
