Chapter 1
–
Installation
9
n

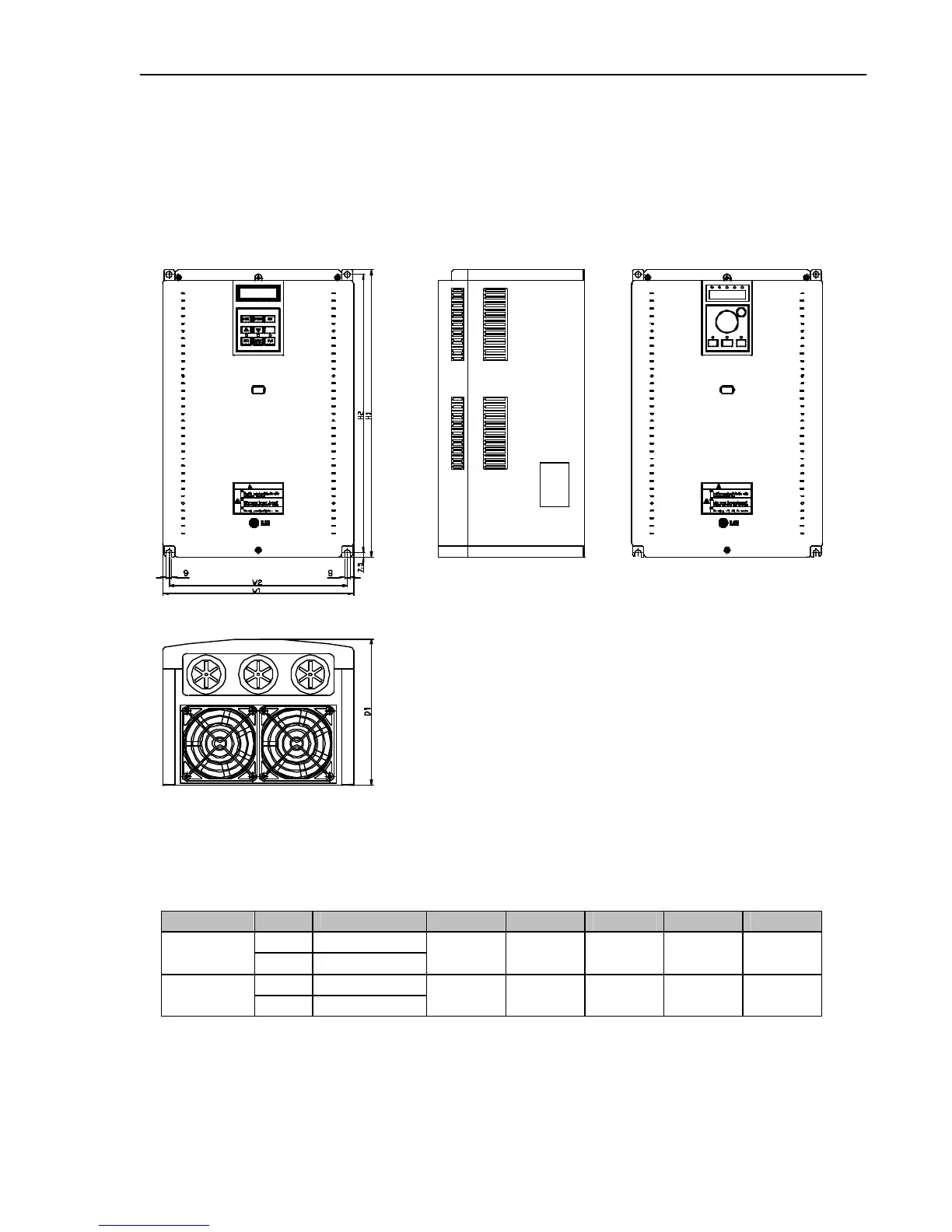

Frame # 3
: 15 ~ 20 HP
n
Frame # 4
: 25 ~ 30 HP
WARNING
Risk of Injury or Electric Shock
Risk of Electric Shock
Risk of Electric Shock
VARIABLE FREQUENCY DRIVE
iS5
VARIABLE FREQUENCY DRIVE
WARNING
Risk of Injury or Electric Shock
Risk of Electric Shock
Risk of Electric Shock
iS5
ESC
SHIFT
LC-200
I/O
LE-200
STOP
RESET
PROG
ENT
DRV
FU1
FU2
SHIFT
ESC
RUN
EXT
mm (inches)
Frame
HP
Model Number
W1
W2
H1
H2
D1
15
SV
110
iS5
-
2/4
Frame # 3
20
SV
150
iS5
-
2/4
250
(9.84)
230
(9.06)
385
(15.16)
370
(14.
57)
201
(7.91)
25
SV
185
iS5
-
2/4
Frame # 4
30
SV
220
iS5
-
2/4
304
(11.97)
284
(11.18)
460
(18.11)
445
(17.52)
234
(9.21)
