Trackit Mk3 User Manual
51

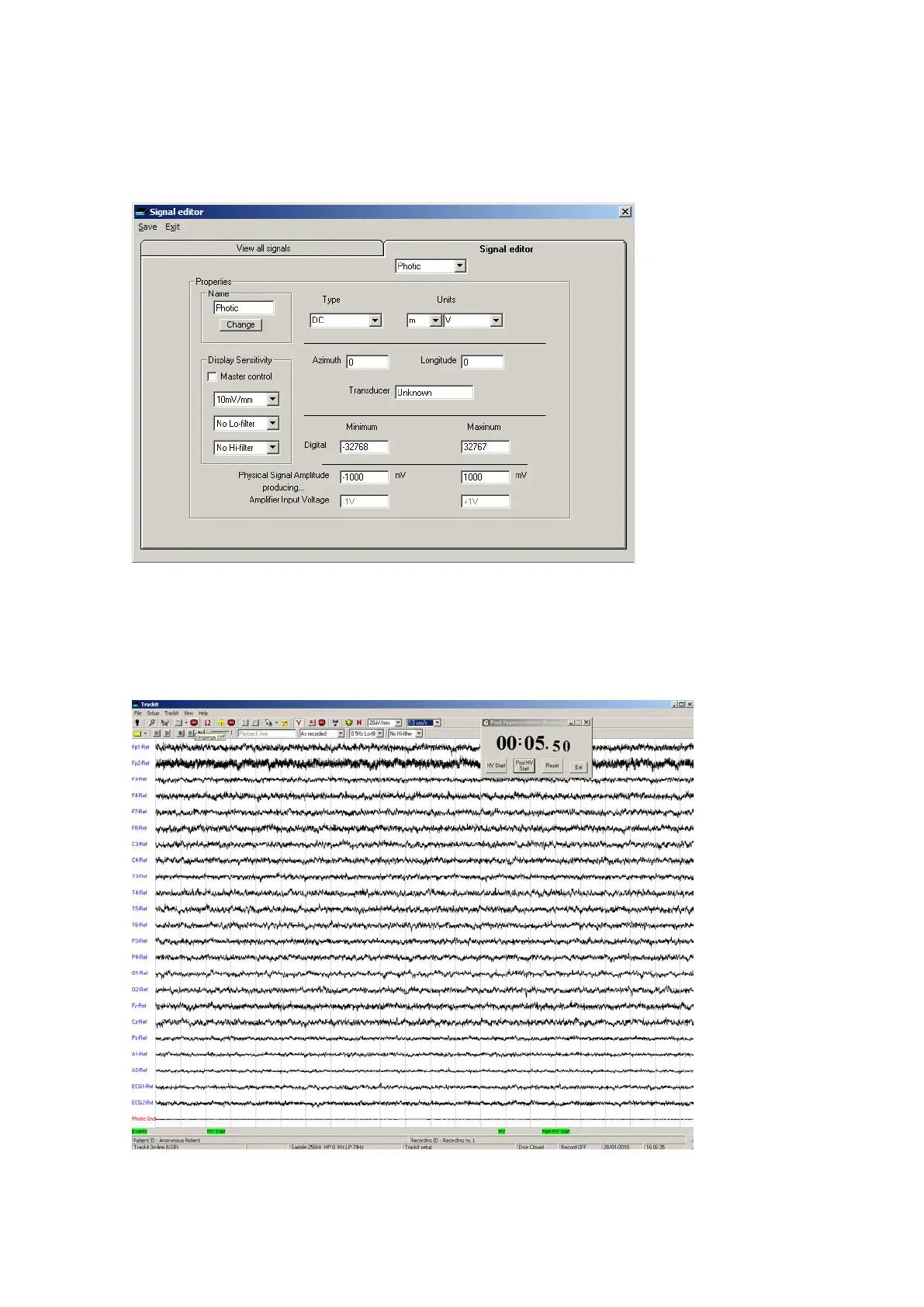

Note: to set up a suit able Phot ic trigger signal definition open the Signal library as described in sec-
tion 4.1, and define a signal with a nam e “ Photic”, set it to t ype DC, units m V and Physical Signal
Am plit ude of + - 1000m V/ V. Set t he sensitivity to non- m aster and 10m V/ m m .
Figur e 4 2 Phot ic t r igge r signa l definit ion
Hyperventilation
A m et hod of t im ing and m arking a Hypervent ilat ion and post- Hypervent ilat ion act ivat ion sequence
is provided.
Figur e 4 3 H ype rve ntila t ion
