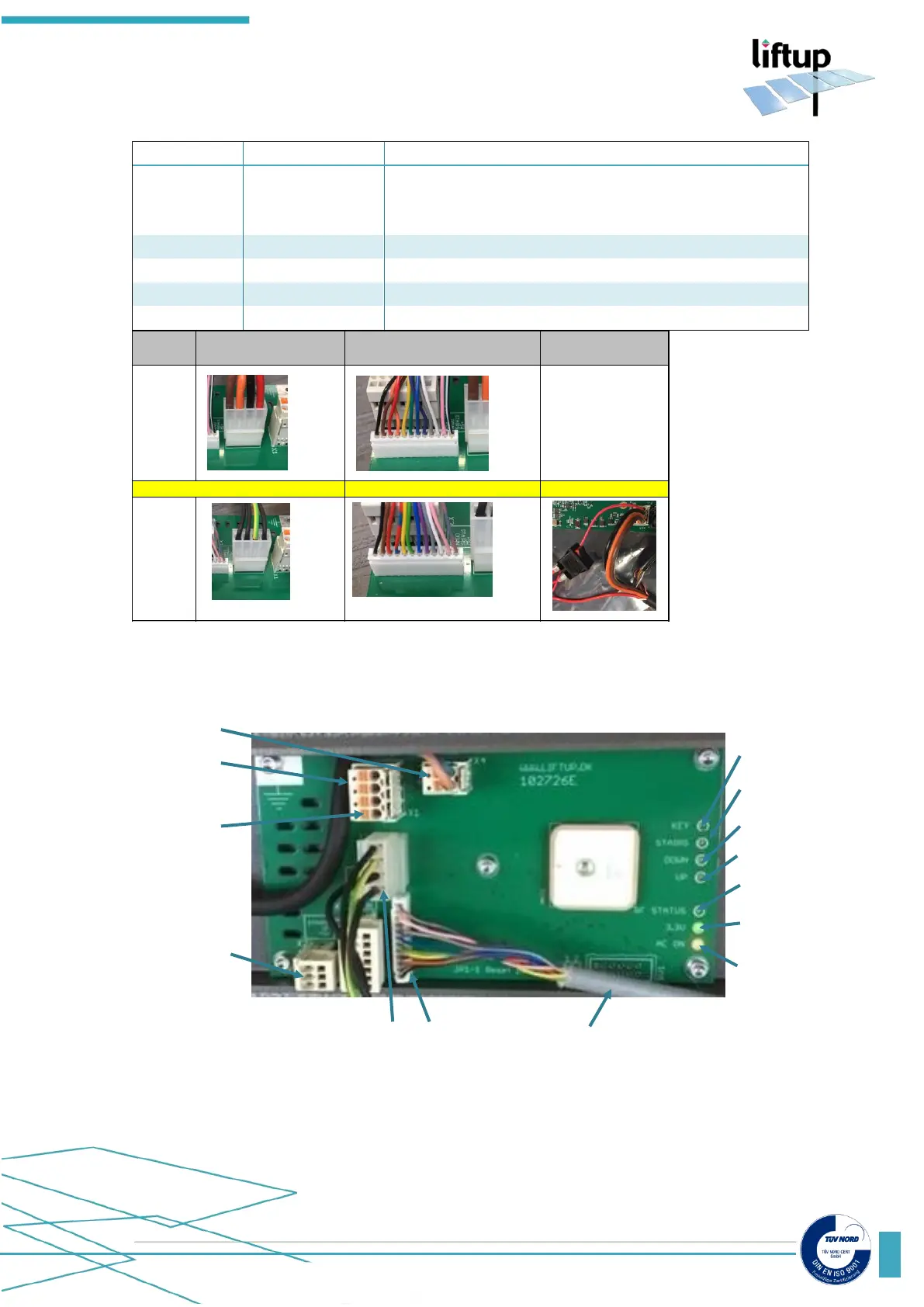

Partnumber connection board X5 connection board X6
103273
New version ON/OFF contact
104017
104018
(1) (2) (green/yellow) (3)
Description
LED Colour
Action if LED is ON
Key
Orange
Key locked
Stairs
/
Not used on EasyLift
Down
Yellow
Button activated
Up
Yellow
Button activated
RF Status
Orange
Remote control activated
3.3 V
Green
DC supply for remote control OK
AC ON
Orange
Power supply connected (mains)
Power supply / PSU
(Wire colours: red or brown / black or blue)
From safety barrier
switch (optional)
From safety barrier
motor (optional)
From wired call
station (optional)
Key
Stairs
Down
Up
RF Status
AC ON
3,3 V
Connect here
Cable from lift
(through E-wire)
