7.4 Automatic ramp/roll-off protection (only on EasyLift 800/900)
The automatic ramp/roll-off protection is driven by an electric motor inside the steel tube. The
motor also drives the mechanical lock inside the pipe. The lock ensures that no one or nothing
rolls off the lifting platform during motion.
Maintenance/Repair/Replacement:

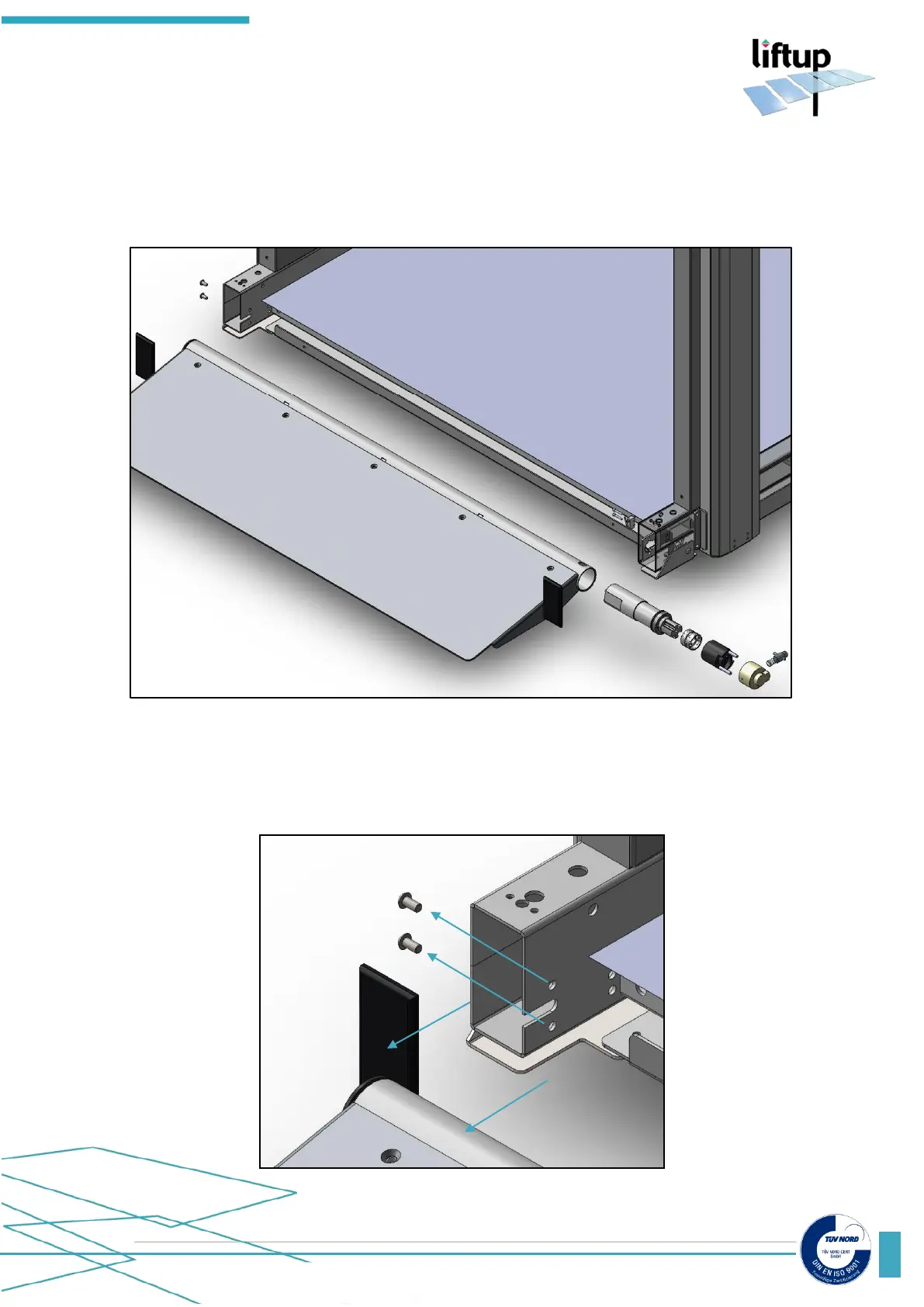

A. Remove black plastic cover (A1). Unscrew the two screws (A2) holding the ramp tube.
Remove ramp tube (A3) gently. Beware of the wires connecting to the motor!
A1
½
A2
½
A3
½
