21
H-BRO SUP
Yellow
H-BRO3 SUP
Yellow
OC. H-BRO3
Red
AC ON
Yellow
BATT.
FLOAD
Yellow
EMS. OK
Green
H-BRO ON
Green
+3V3
Yellow
Jumpers:
1: Ignore GO
2: Upper Gate Sw.
3: IR Stairs
4: Lower Gate SW.
5: IR Platform
6: Under Pan SW.
(See description
previous page)
+12V
Yellow
HB.
Yellow

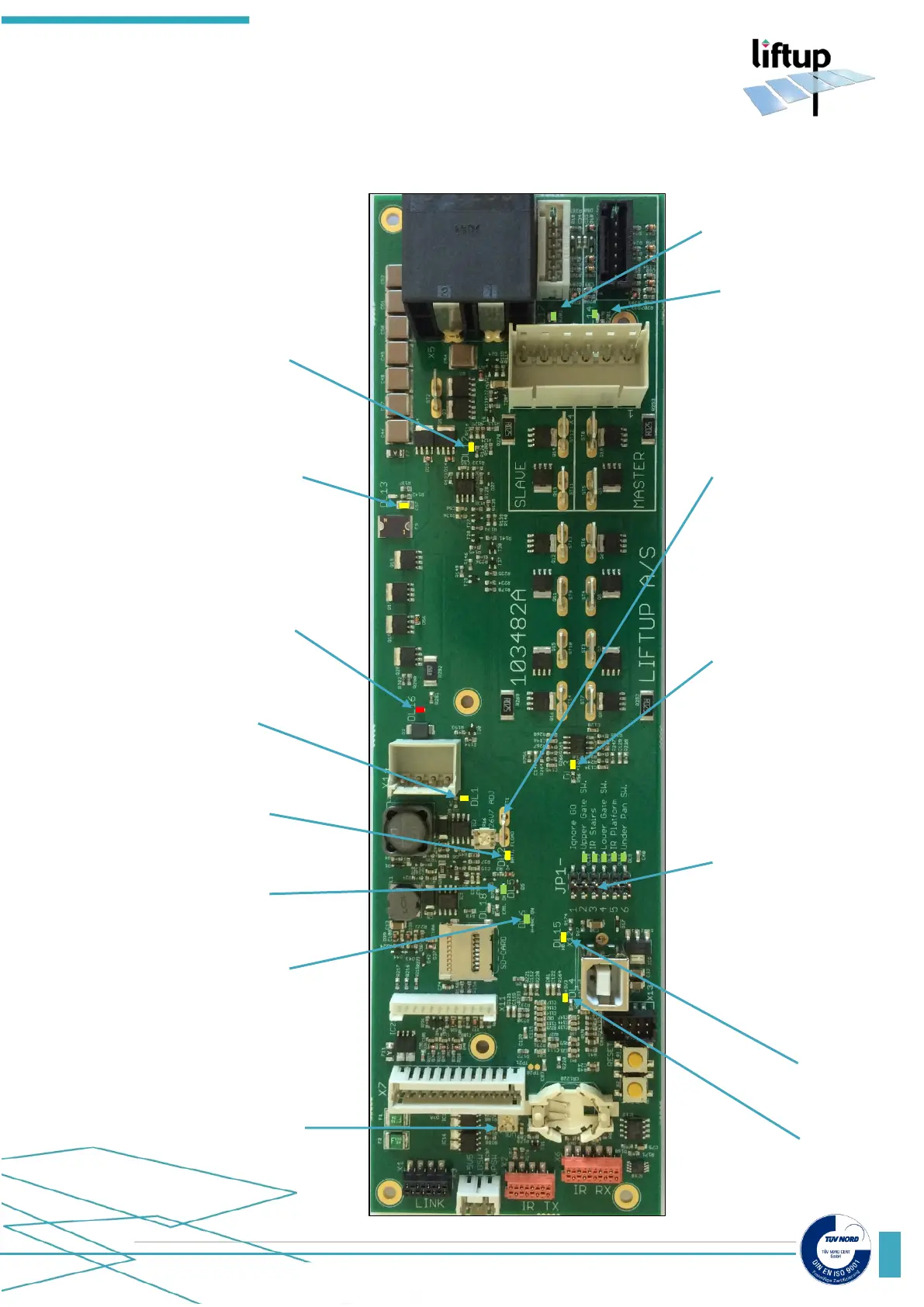

3.4 Control board LED signals
Control board (103482):
End SW Slave actuator
green
End SW Master
actuator green
VOLUME
Audible alarms
VSS / GND
Ref. for
Measurements
