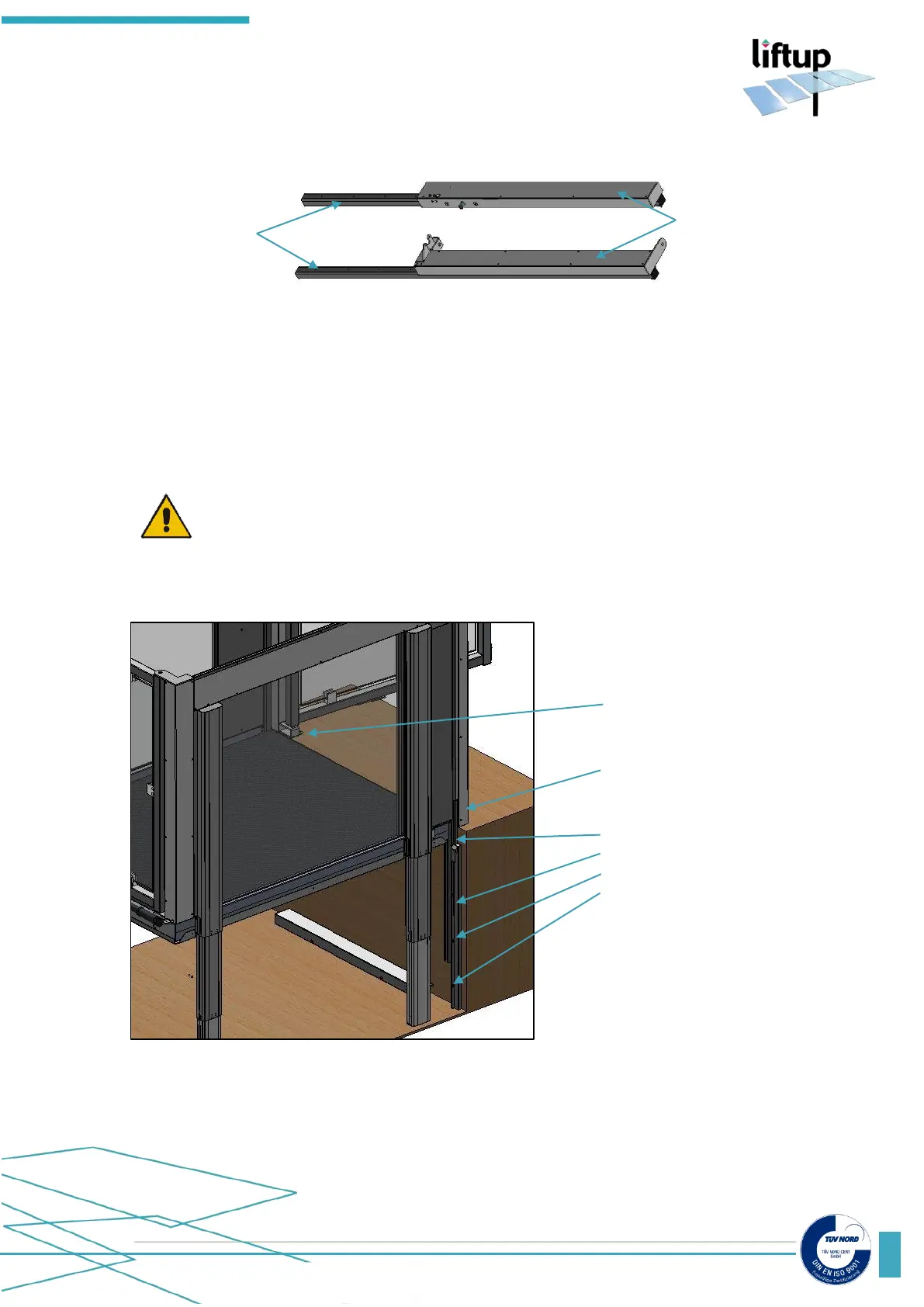

2.5 Attachment with wall profiles and door; EasyLift 1100
The lift is normally delivered almost fully assembled. The door posts are attached to the two
wall profiles, and just need to be fitted to the adjoining wall/floor to ensure a stable performance.
Approach the lift to the wall and place the wall profiles. (The example below is with a door
mounted on the left-hand side of the lift).
Use service mode (see chapter 6) to run the lift to top position.
ATTENTION! Make sure that the wall profiles are 100% vertically mounted, and
the distance between them is exact.
Once the lift is in the position as the picture below, you can fix the wall profiles (left and right)
to the wall.
Respect the distance 1100 mm between wall profiles for the EasyLift 1100.
Once the wall profiles are fixed, you can run the lift down again.
Wall profiles
Door posts
Bracket for fixing the door
and the actuator
Door contact built into
the corner
Fixing points: Use the
appropriate fixing screws,
adapted to the wall
material
