3.2 Control boards

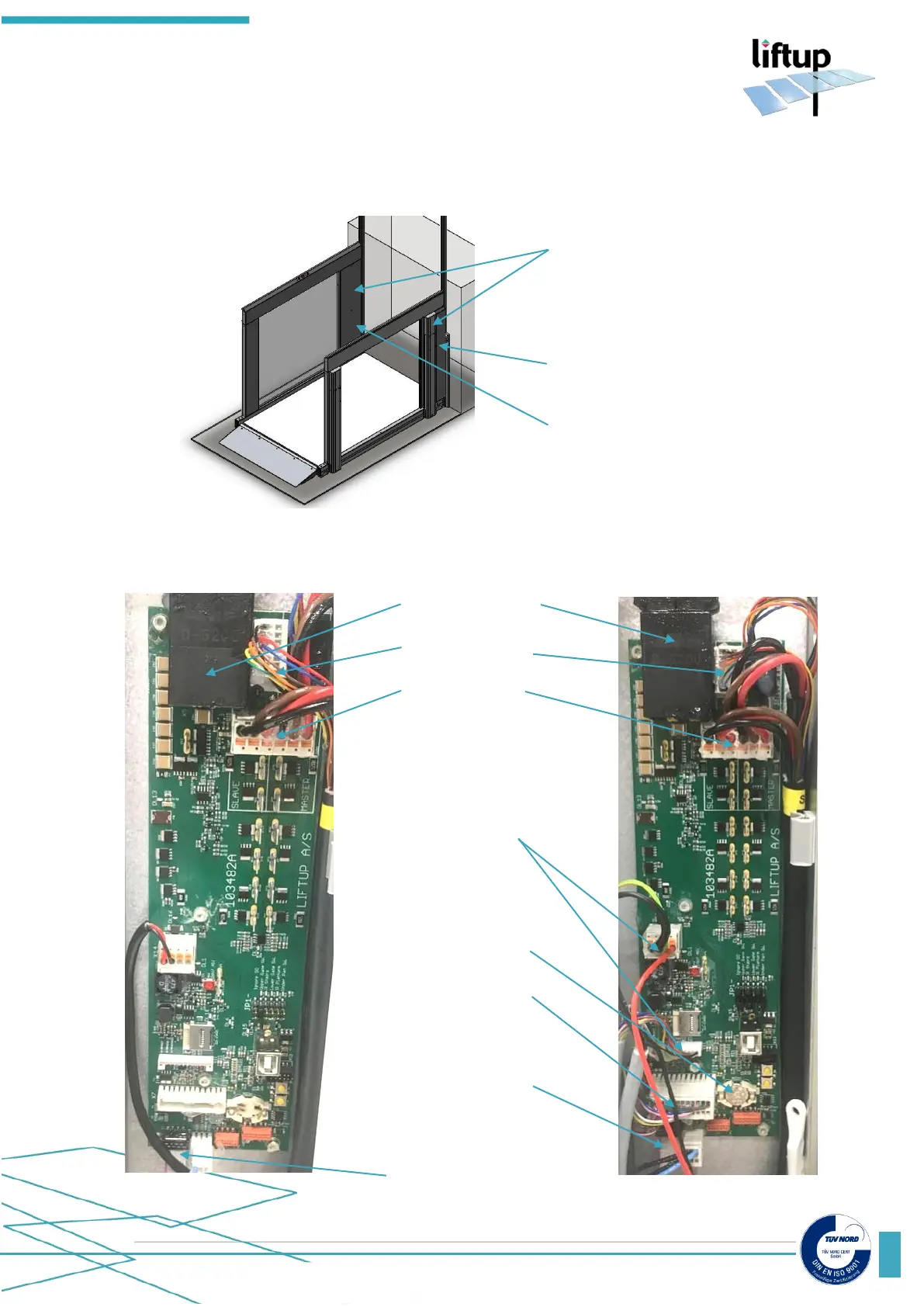

The control boards (103482) for the lift are mounted inside the two control units, placed on
each side of the lift.
Remove covers for control unit
to access control boards.
Primary control board (always
on right-hand side of the lift)
Secondary control board
SECONDARY Control board
(103482) LH side
PRIMARY Control board
(103482) RH side
Power connection
All sensors cable
Actuator cables
PCB for Connection
box cables
Battery CR1408
Operating panel
To secondary Control
board LH side
To primary control
board RH side
