4.5 ON/OFF Key switch (Optional)
The EasyLift V3 can be delivered with a key switch to switch off the unit (art.no. 103480). How
to connect a standard Liftup key switch is described below.

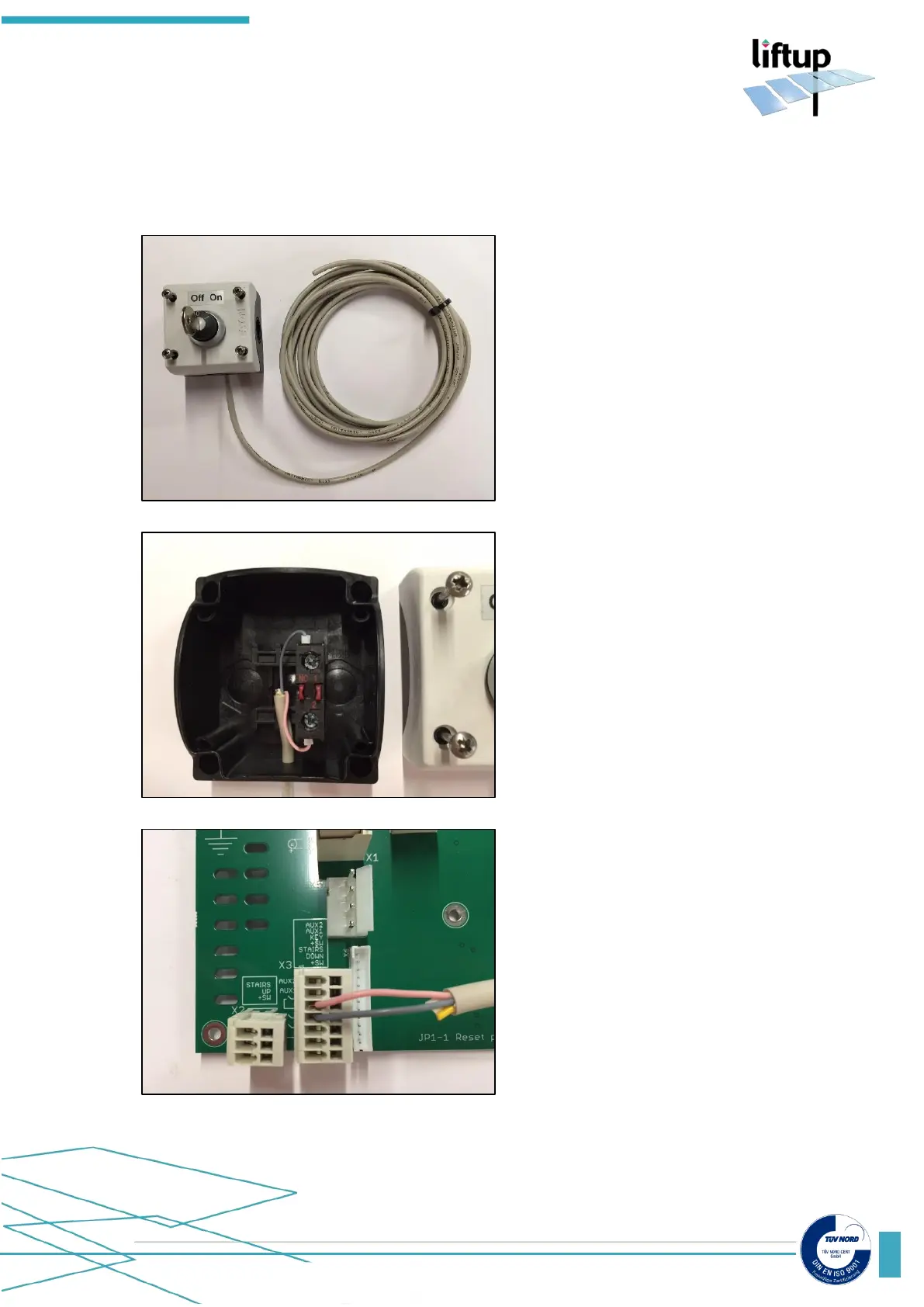

Standard key switch
Wires mounted to contact in key
switch box
Wires from key switch mounted
on print for connection box.
Placed on bottom rail.
