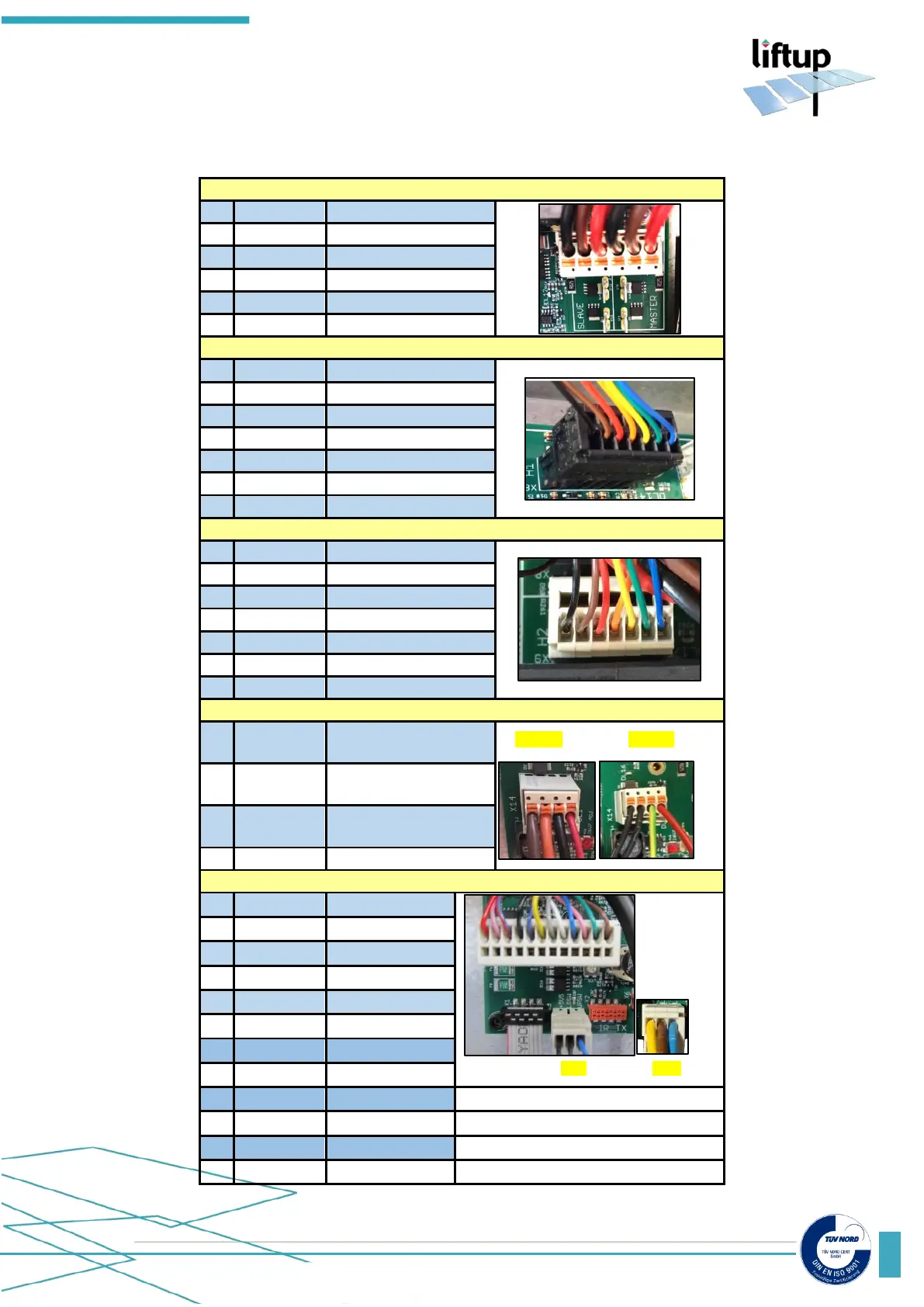

3.6 Control board wiring
103482 / PRIMARY SIDE (right) EASYLIFT V3
X4 Actuators motor power
6
Black
Slave W
5
Brown
Slave U
4
Red
Slave V
3
Black
Master W
2
Brown
Master U
1
Red
Master V
X8 Actuator feedback Master
1
Black
Hall sensor U
2
Brown
+5V
3
Red
VSS (Gnd)
4
Orange
Hall sensor V
5
Yellow
Hall sensor W
6
Green
Not used
7
Blue
Stop Sw
X9 Actuator feedback Slave
1
Black
Hall sensor U
2
Brown
+5V
3
Red
VSS (Gnd)
4
Orange
Hall sensor V
5
Yellow
Hall sensor W
6
Green
Not used
7
Blue
Stop Sw
X14 Power connections
1
Brown or
Black 1
Upper Gate Motor (-)
103273 104017
2
Orange or
Black 2
Upper Gate Motor (+)
3
Black or
Yellow/Green
VSS ( - Supply / GND)
4
Red
Min. 29V (from PSU X4)
X7 connections operating panel
12
Red
Light +24V
11
Pink/Grey
AUX 2
10
Red/Blue
AUX 1
9
Black
Light neg.
8
Purple
Alarm button
7
Yellow
Down button
6
Grey
Up button
5
White
Emergency Sw +
4
Blue
VSS (Gnd)
X1 Ribbon cable for LINK
3
Pink
Emergency Sw -
X3 (Black or Yellow) LGSW+5V5
2
Green
Speaker +
X3 (Black or Brown) LGSW return
1
Brown
Speaker -
X3 Blue UPSW return
