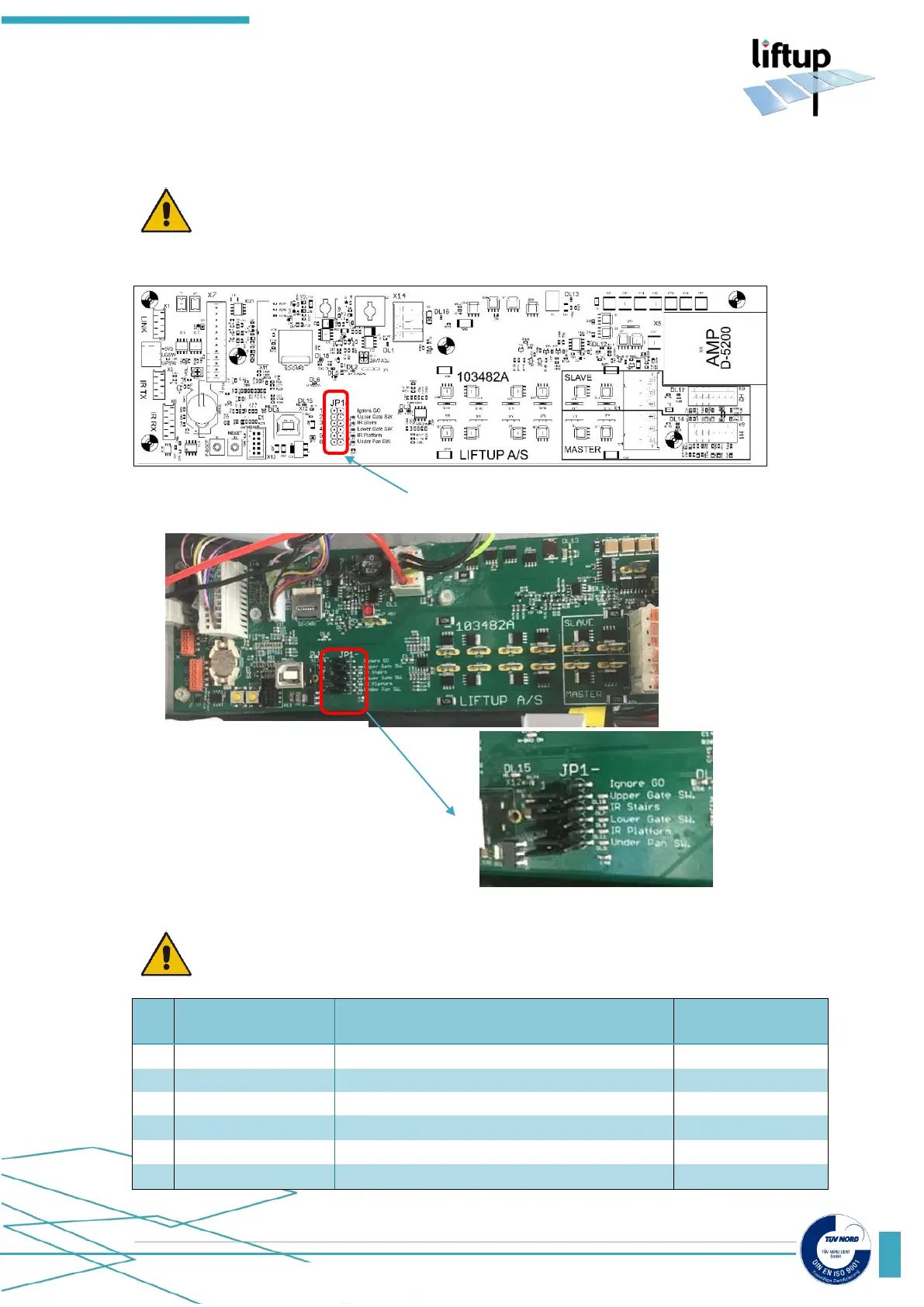

3.3 Control board jumpers JP1
IMPORTANT! Remove all jumpers to reactivate all safety functions. (Except
“Ignore GO”). Jumpers and LED are only valid on PRIMARY control board – Right-
hand side.
Jumper 3 and 5 are always ON for Easylift.
Nb
Description
Action if jumper is ON. (PRIMARY
Control Board only)
Normal position
of Jumper
1
Ignore GO
Allows auto return and soft stop
ON
2
Upper Gate Switch
Ignore upper gate switch
NOT ON
3
IR Stairs
Ignore IR error on Steps / not used on Easylift
ON
4
Lower Gate Switch
Ignore lower gate switch
NOT ON
5
IR Platform
Ignore IR error Platform / not used on Easylift
ON
6
Under Pan Switch
Ignore Under Pan safety switches
NOT ON
Jumpers
PRIMARY Control board
(103482) RH side mounted
PRIMARY Control board
(103482) RH side mounted
