4.4 How to pair transmitter and receiver
4.4.1 Wireless call station and receiver of the lift
The wireless call station and receiver must always be paired in order to work.
The receiver will not react to a wireless call station which is not paired with it.
A receiver can be paired with up to 20 wireless call stations.
A wireless call station can be paired with several receivers if required.
When a receiver is powered on (please see section 10.6) the RF-Status in the connection box
will flash for 2 minutes. Or until it is paired with a wireless call station.
1. Ensure that there is power to the system. Press the
emergency stop and switch off the on/off switch on the side
of the lift (please see item 10.6).

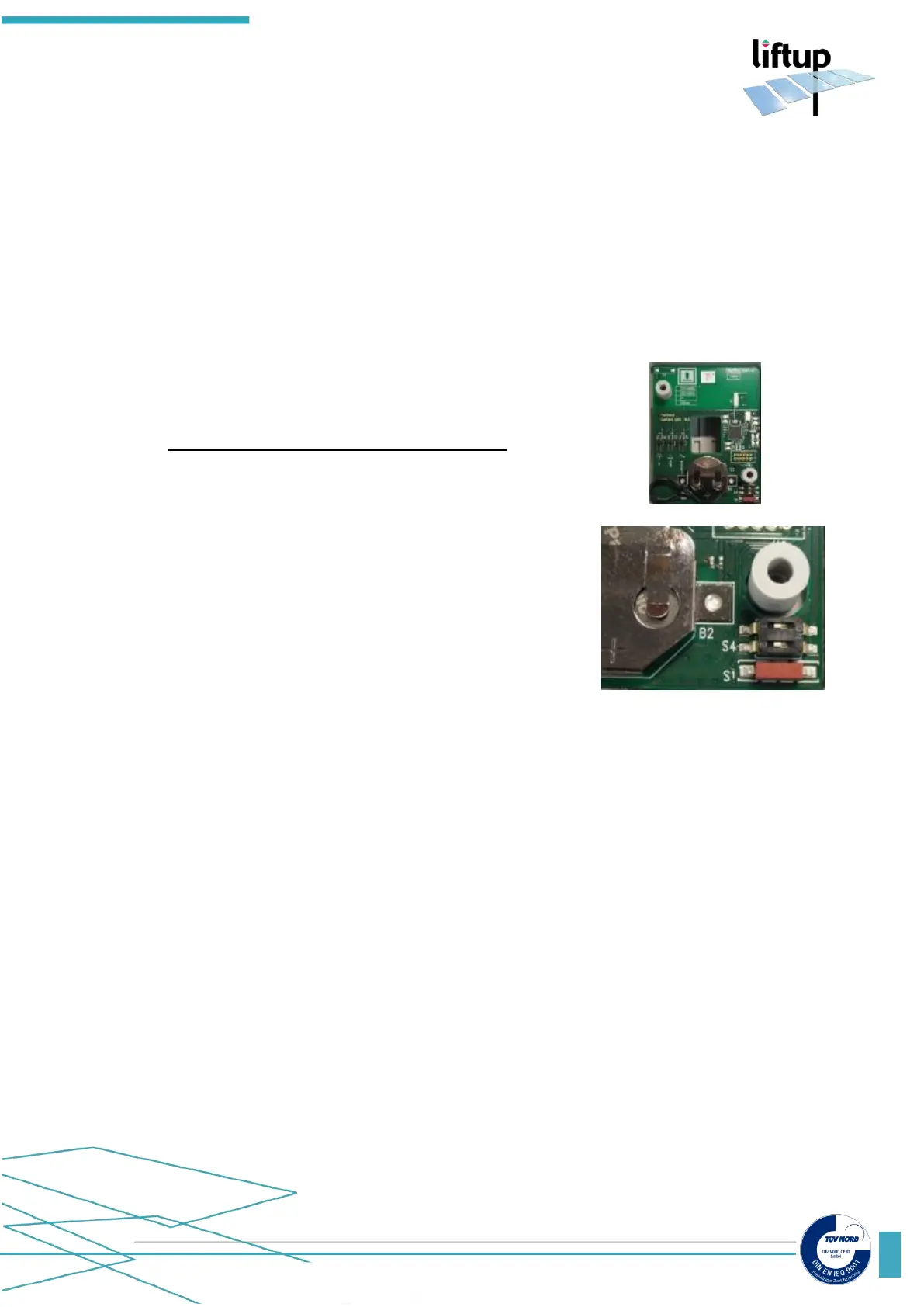

2. Wall-mounted remote-controlled call station: Set dip
switch S4 #2 to ON and press on the contact or short-
circuit (↑) or (↓) using a metal object. The control LED on
the call station will start to flash slowly. The call station is
now in installation mode for 2 minutes.
Return S4 #2 to its starting position (off).
3. Within these 2 minutes, release the red emergency stop
on the lift by turning it clockwise.
4. The control LED on the call station is paired with the lift
when it stops flashing.
5. Test the system so as to ensure the pairing has been
performed correctly. If not, repeat 1-5 above.
If you need to pair several call stations to the receiver,
repeat items 2-6 above.
6. Switch on the on/off switch on the side of the lift.
