2. Attachment to building
ATTENTION! Remember to push the emergency stop button, before you start
working underneath the lifting platform.
2.1 Mounting of bottom rail (control board)
The bottom rail is delivered with the control board mounted, and ready for connection. Before
mounting the bottom rail to the floor, the cable from the lift, running through the E-wire must
me mounted.

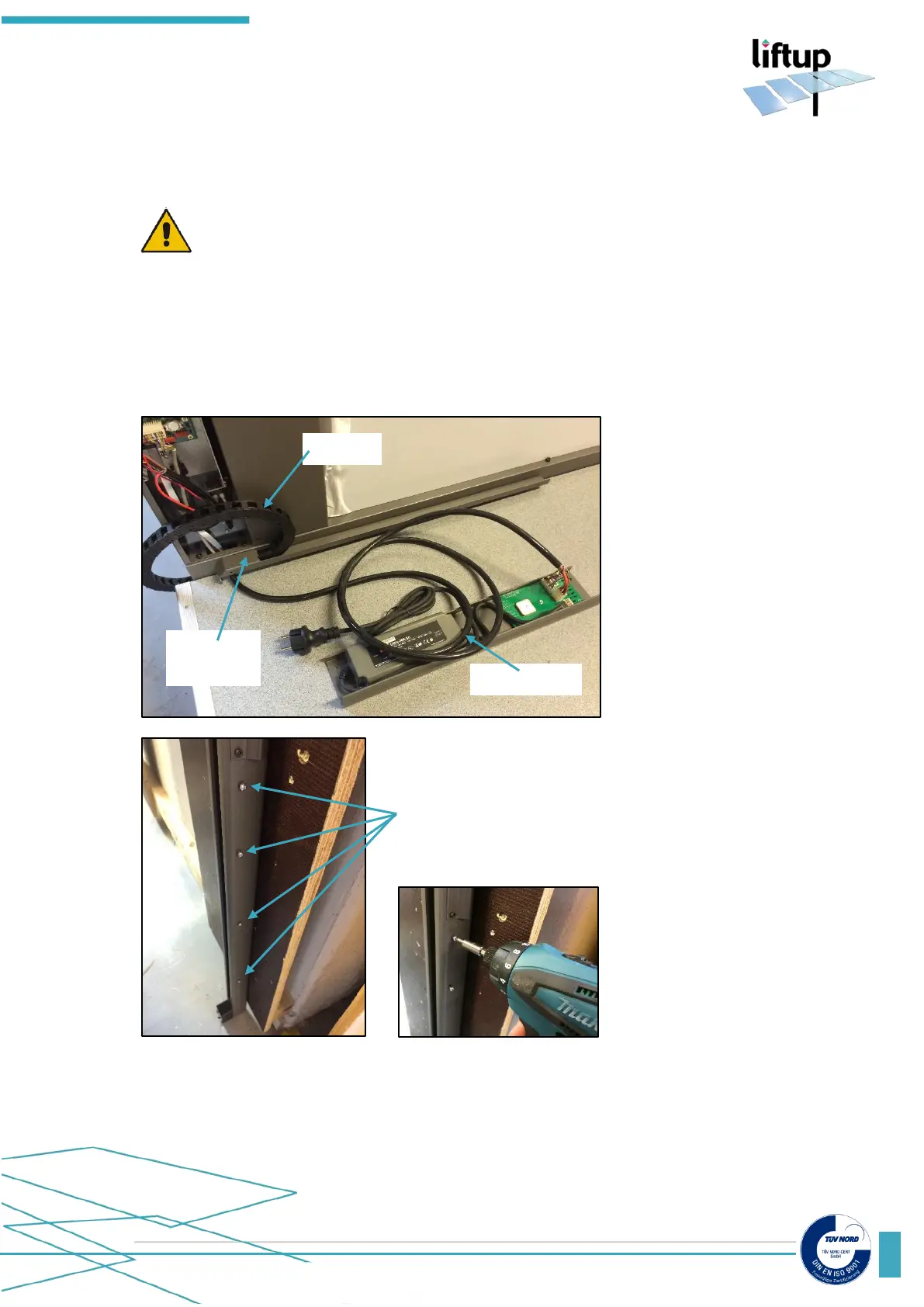

Bottom rail is delivered
with cable connected to
E-wire and cover for E-
wire.
Unscrew four Torx
screws from the RH
side wall profile.
The Torx screws are
for mounting of cover
for E-wire.
Bottom rail
E-wire
Cover for
E-wire
Torx screws
