INSTALLATION & SERVICE MANUAL – EASYLIFT – UK VERS 1.5
Liftup A/S Hagensvej 21| DK-9530 Støvring | Denmark | T: +45 96 86 30 20 | M: support@liftup.dk | www.liftup.dk | CVR DK-1015 3964
24

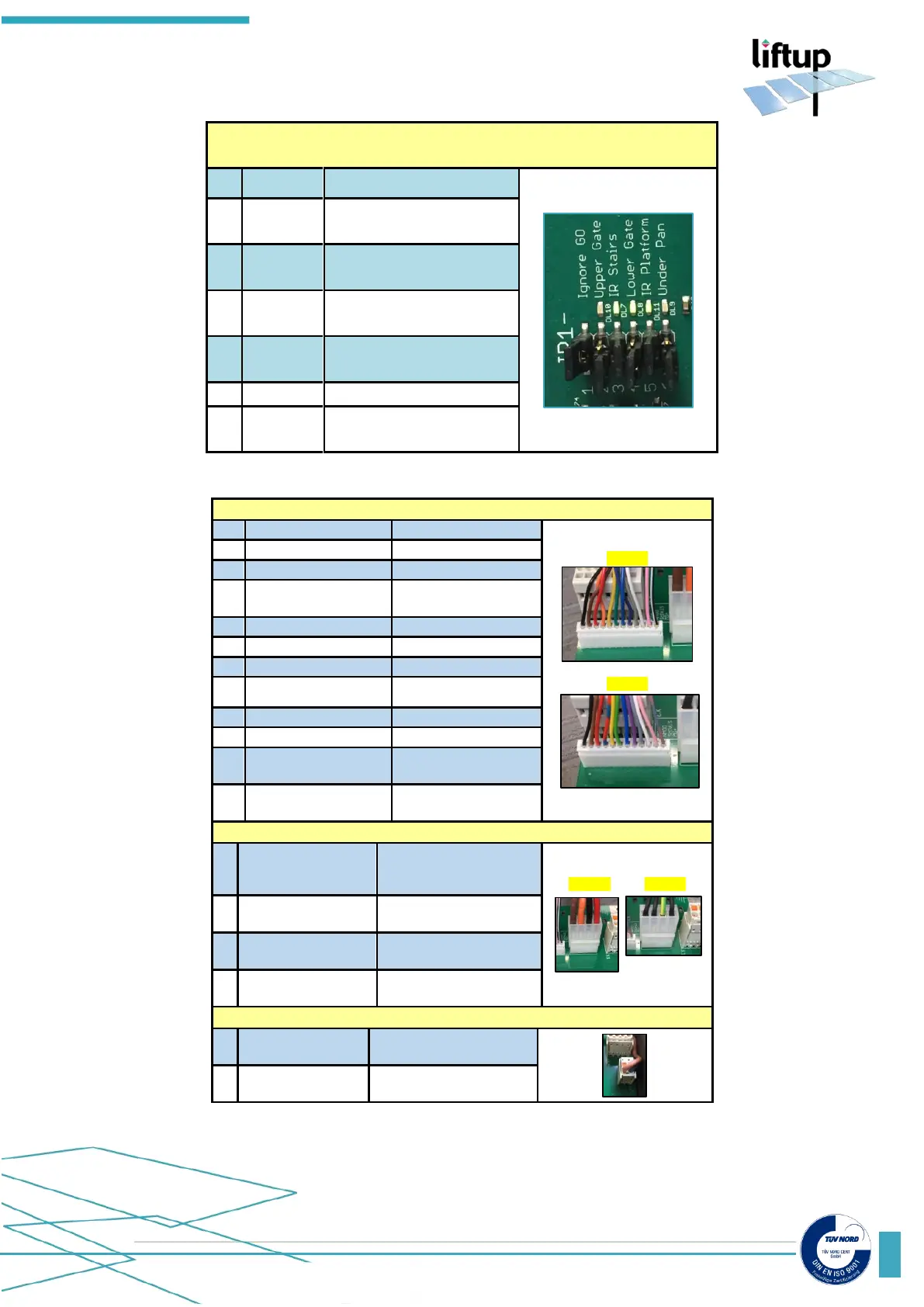

Control Board Jumpers JP1
Jumper 3 and 5 always ON for EASYLIFT
No
Description
Action
1
Ignore GO
Allow auto return and soft
stop
2
Upper gate
SW
Ignore upper gate switch
3
IR Stairs
Ignore IR errors and guider
squeeze protection
4
Lower Gate
SW
Ignore lower gate switch
5
IR Platform
Ignore upper IR
6
Under Pan
SW
Ignore Safety switches
102726 CONNECTION BOARD
X6
1
Black
UGSW Upper gate Sw
103273
104018
2
Brown
UKEY
3
Red
5V5 Fused max 100mA
4
Orange or
Red/ Blue
CAN L1
5
Yellow
CAN H1
6
Green
AUX1
7
Blue
AUX2
8
Purple
+29V Fused max
100mA
9
Grey
VSS (- Supply / GND)
10
White
Call station/ remote UP
11
Pink
Call station/ remote
DOWN
12
Black/White or
Grey/Pink
Call station/ remote
STAIRS
X5
1
1. Brown
or
2. Black 1
Upper Gate Motor -
103273 104017
2
Orange or
Black 2
Upper Gate Motor +
3
Black or
Yellow/G reen
VSS ( - Supply / GND)
4
Red or
Black 3
Min. 29V (from PSU X4)
X4 power from PSU
1
Red or Brown
Min. 29V
2
Black or Blue
VSS (Gnd)
