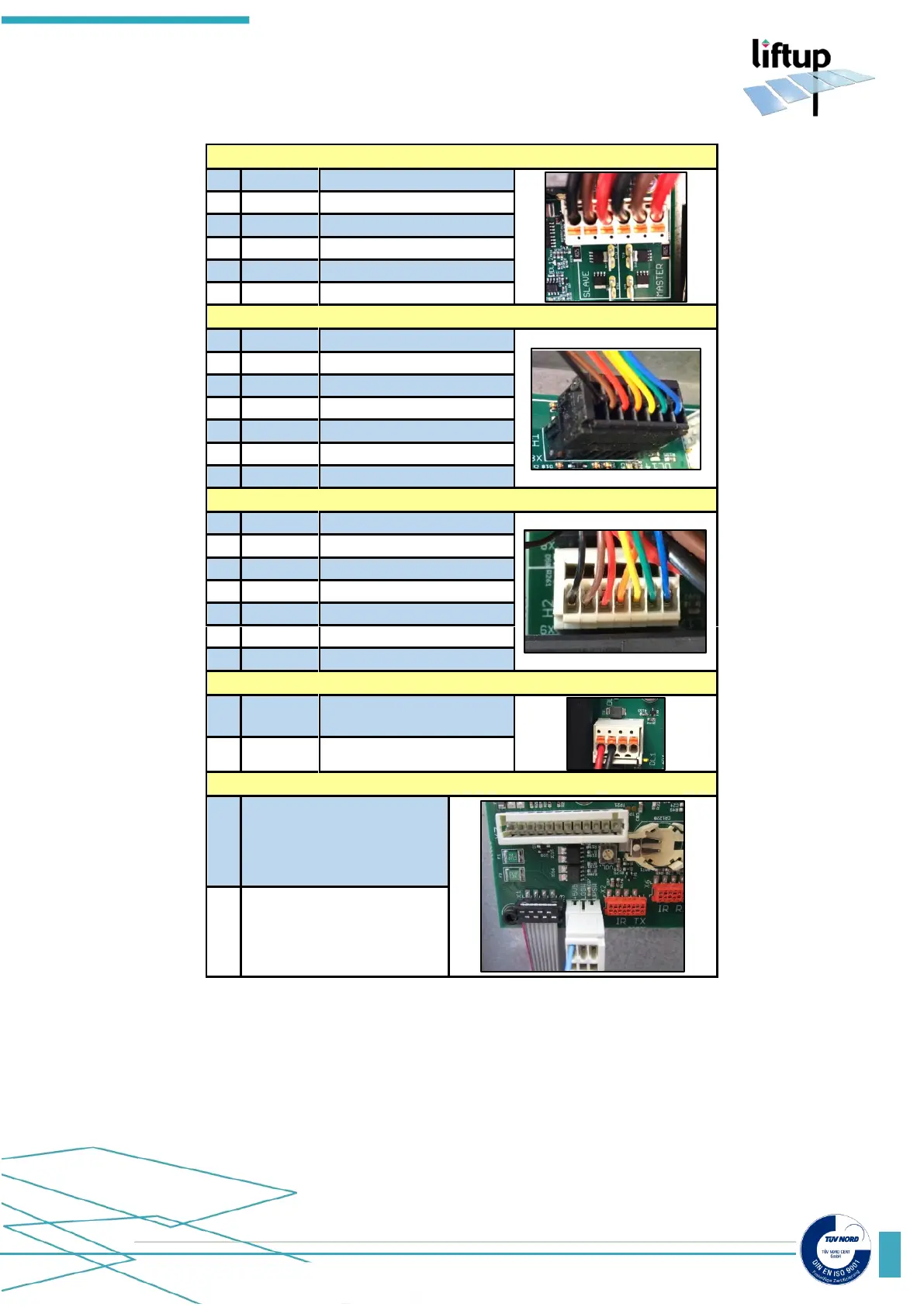

103482 / SECONDARY SIDE (left) EASYLIFT V3
X4 Actuators motor power
6
Black
Slave W
5
Brown
Slave U
4
Red
Slave V
3
Black
Master W
2
Brown
Master U
1
Red
Master V
X8 Actuator feedback Master
1
Black
Hall sensor U
2
Brown
+5V
3
Red
VSS (Gnd)
4
Orange
Hall sensor V
5
Yellow
Hall sensor W
6
Green
Not used
7
Blue
Stop Sw
X9 Actuator feedback Slave
1
Black
Hall sensor U
2
Brown
+5V
3
Red
VSS (Gnd)
4
Orange
Hall sensor V
5
Yellow
Hall sensor W
6
Green
Not used
7
Blue
Stop Sw
X14 Power connections
1
Red or
Brown
Lower Gate Motor
2
Black
Lower Gate Motor
X1 - X3
X1
Ribbon cable for LINK
X3
Blue Under pan switch +5V5
