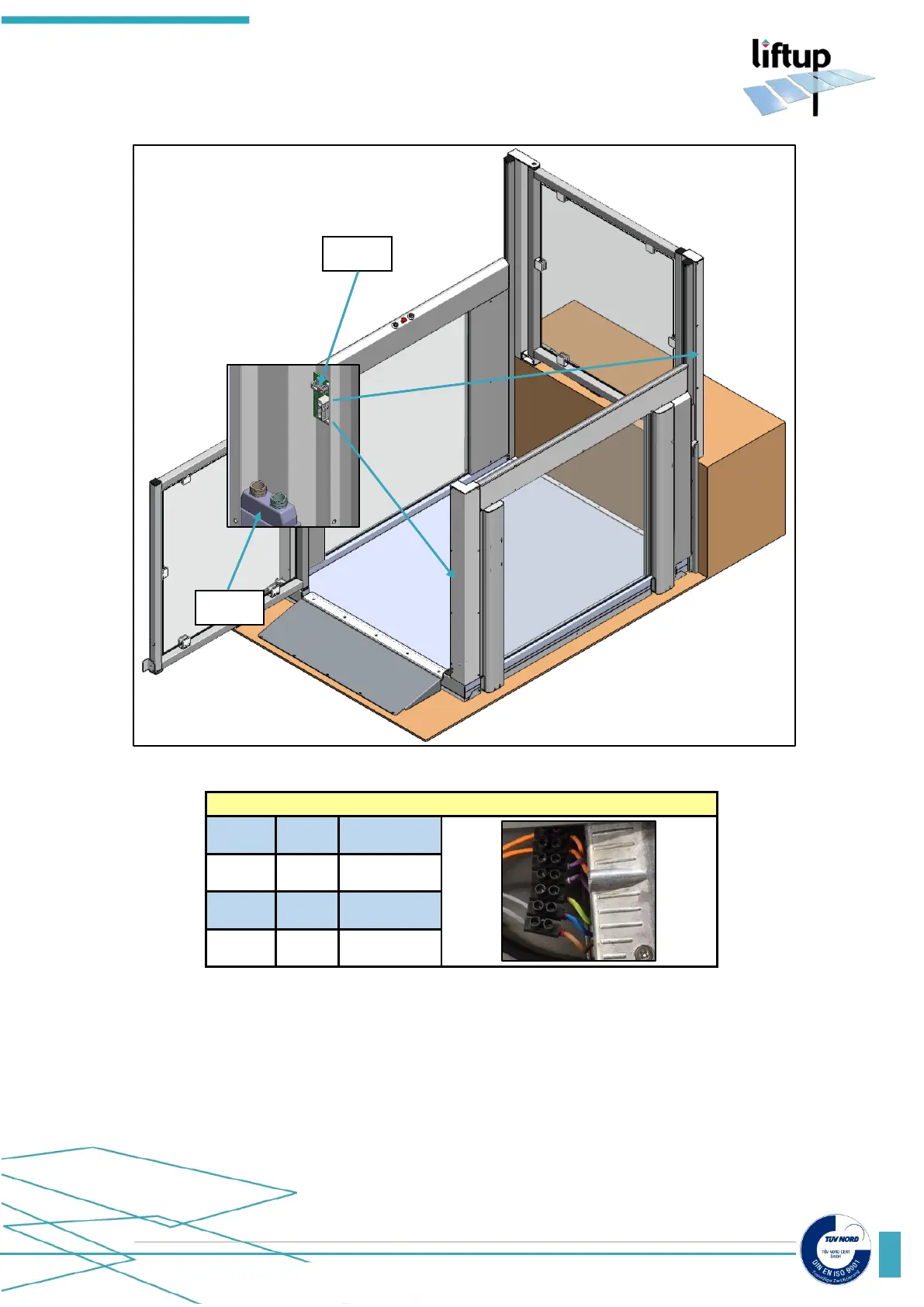

PCB for lock is placed inside door posts, just above the lock.
103689 Lock for door, RH & 103690 Lock for door, LH
Connections lock to PCB
Orange
Orange
Lock SW
Orange
Orange
Lock SW
Blue
Grey
Solenoid (+)
Brown
Grey
Solenoid (-)
PCB
Lock
