EDID list
The Emulated EDIDs on the video inputs can be chosen by rotary switches only:
DVI-D EDID rotary
DVI-A EDID rotary
#0
Copy from SC MM OUT (Dynamic EDID)
#0
Copy from SC MM OUT (Dynamic EDID)
#1
Factory EDID Universal HDMI (default)
#1
Factory EDID Universal Analog (default)
#2
Factory EDID (DVI) 1024x768@60
#2
Factory EDID (Analog) 1024x768@60
#3
Factory EDID (HDMI) 1280x720p@60
#3
Factory EDID (Analog) 1280x720@60
#4
Factory EDID (HDMI) 1920x1080p@60
#4
Factory EDID (Analog) 1920x1080@60
#5
Factory EDID (DVI) 1920x1200@60
#5
Factory EDID (Analog) 1920x1200@60
#6
User EDID (def.: Univ. HDMI EDID)
#6
User EDID (def.: Univ. Analog EDID)
#7
User EDID (def.: Univ. HDMI EDID)
#7
User EDID (def.: Univ. Analog EDID)
#8
User EDID (def.: Univ. HDMI EDID)
#8
User EDID (def.: Univ. Analog EDID)
#9
User EDID (def.: Univ. HDMI EDID)
#9
User EDID (def.: Univ. Analog EDID)
VGA EDID rotary
HDMI EDID rotary
#0
Copy from SC MM OUT (Dynamic EDID)
#0
Copy from SC MM OUT (Dynamic EDID)
#1
Factory EDID Universal Analog (default)
#1
Factory EDID Universal HDMI (default)
#2
Factory EDID (Analog) 1024x768@60
#2
Factory EDID (DVI) 1024x768@60
#3
Factory EDID (Analog) 1280x720@60
#3
Factory EDID (HDMI) 1280x720p@60
#4
Factory EDID (Analog) 1920x1080@60
#4
Factory EDID (HDMI) 1920x1080p@60
#5
Factory EDID (Analog) 1920x1200@60
#5
Factory EDID (DVI) 1920x1200@60
#6
User EDID (def.: Univ. Analog EDID)
#6
User EDID (def.: Univ. HDMI EDID)
#7
User EDID (def.: Univ. Analog EDID)
#7
User EDID (def.: Univ. HDMI EDID)
#8
User EDID (def.: Univ. Analog EDID)
#8
User EDID (def.: Univ. HDMI EDID)
#9
User EDID (def.: Univ. Analog EDID)
#9
User EDID (def.: Univ. HDMI EDID)

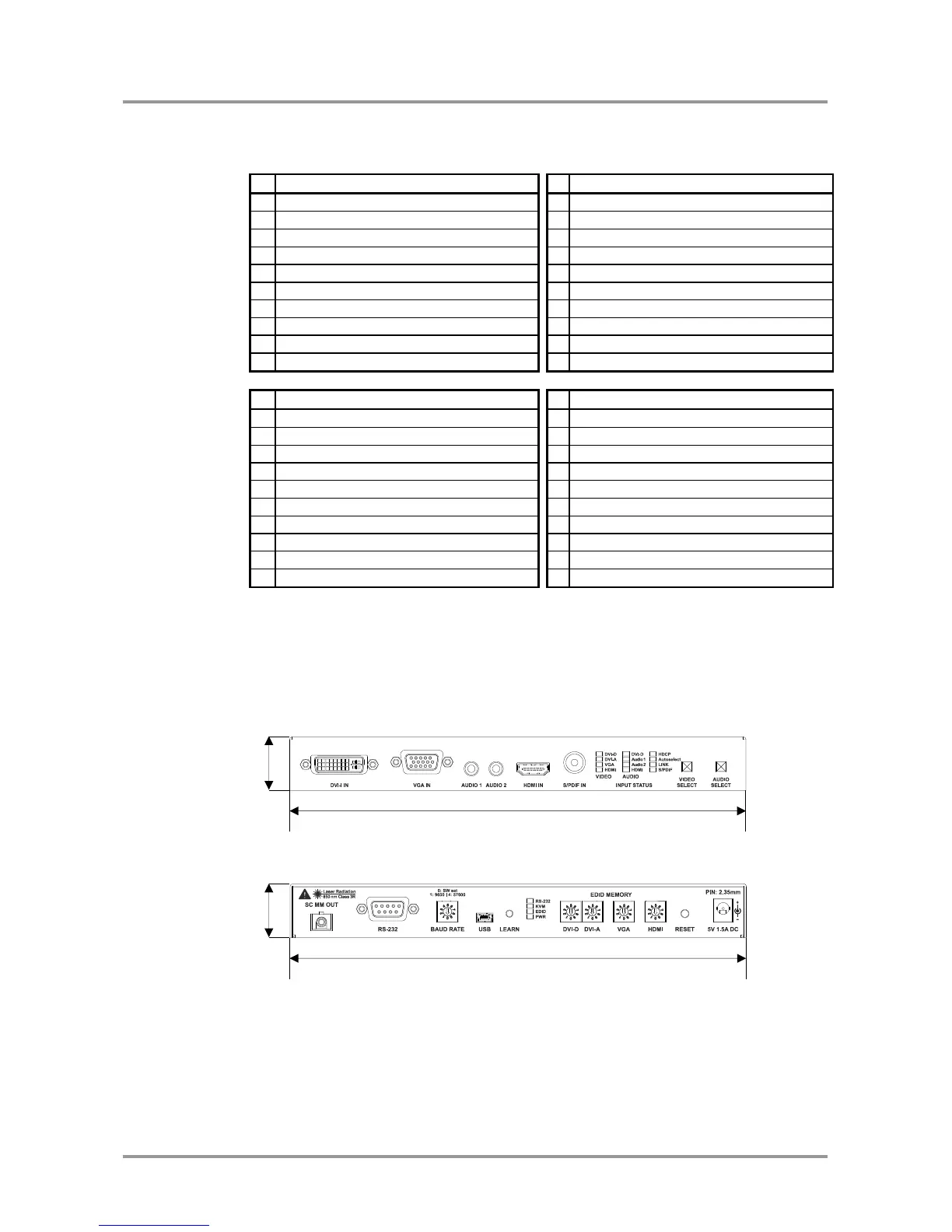

15. Mechanical Drawings
The given values are in mm.
Front view
Rear view
221,00
26,00
221,00
26,00
