6.2. Input selection
Video and Audio input can be chosen with:
 VIDEO and AUDIO SELECT button on the front panel
(sections 6.3, 6.4 on page 30)
 Autoselect mode (section 6.5 - 6.7 on pages 31 - 35)
 Lightware Matrix Controller software (section 9.3.1 on page 57)
 Protocol command (section 10.6.1 on page 81)
6.3. Video input selection

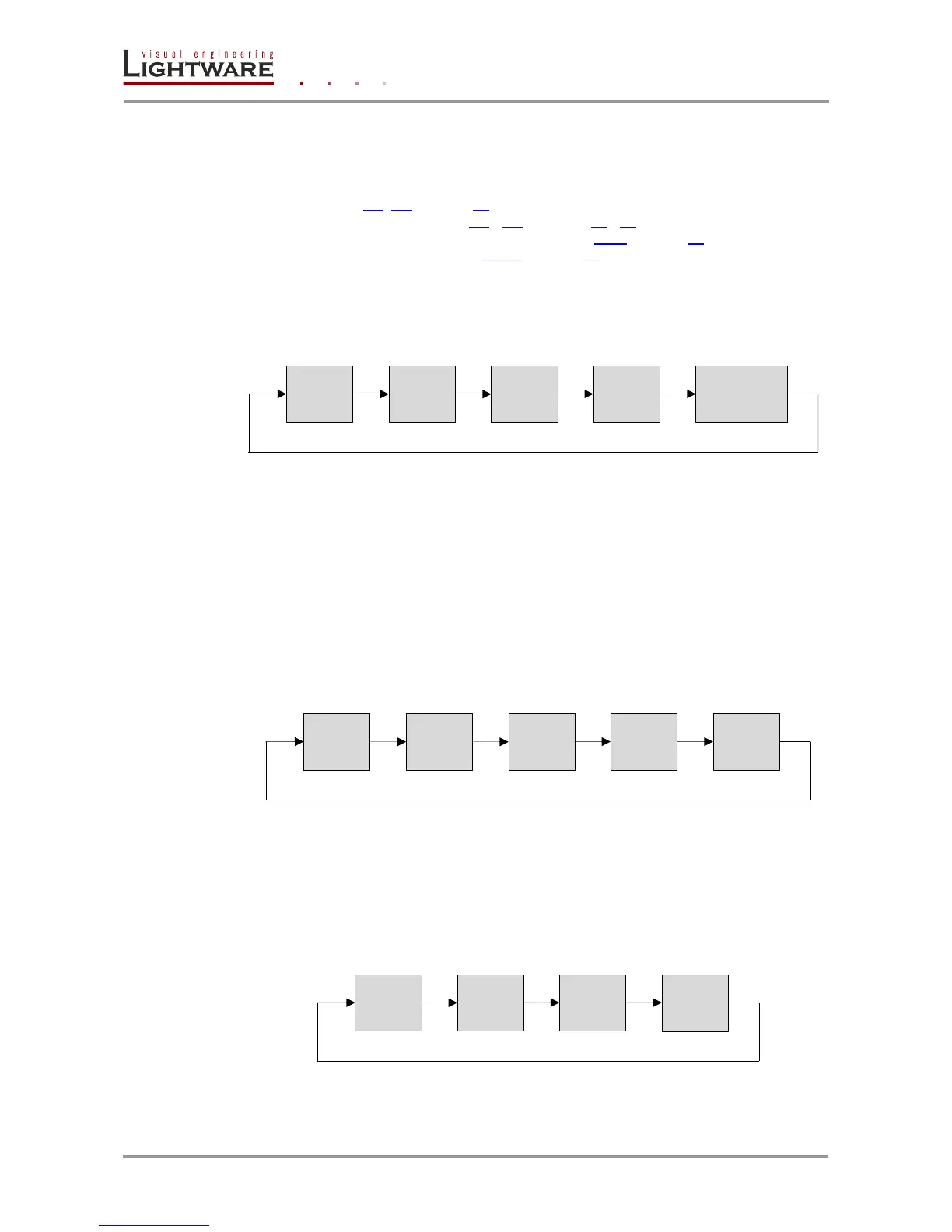

The order of the video selection is shown on the Figure 6-1. After the VIDEO SELECT
button was pushed, the next video input will be chosen. The corresponding LED lights up.
Figure 6-1. Video input selection order
6.4. Audio input selection
The order of the audio selection depends on the selected video input. The audio inputs
can be selected are shown on Figure 6-2, Figure 6-3, Figure 6-4.
After the AUDIO SELECT button was pushed, the next input will be chosen. The
corresponding LED lights up.
In case of analog video inputs (DVI-A and VGA) any audio input can be selected. After
the AUDIO SELECT button was pushed, the next audio input will be chosen. The
corresponding LED lights up.
Figure 6-2. Audio input selection order for analog video inputs
In case of the digital video inputs (DVI-D and HDMI) the embedded audio input of the
selected video input, the analog audio 1, analog audio 2 inputs and the S/PDIF audio can
be selected.
It means that analog audio input 1, analog audio input 2, HDMI embedded and S/PDIF
audio inputs can be used for HDMI video input.
Figure 6-3. Audio input selection order for HDMI video input
HDMI
INPUT
VGA
INPUT
AUTOSELECT
MODE
DVI-D
INPUT
DVI-A
INPUT
HDMI
EMBED.
INPUT
AUDIO 2
INPUT
S/PDIF
INPUT
DVI-D
EMBED.
INPUT
AUDIO 1
INPUT
HDMI
EMBED.
INPUT
AUDIO 2
INPUT
S/PDIF
INPUT
AUDIO 1
INPUT
