UMX-OPT-TX150R
User’s Manual
Section 2. General description Page 11 / 107
2.3. Typical applications

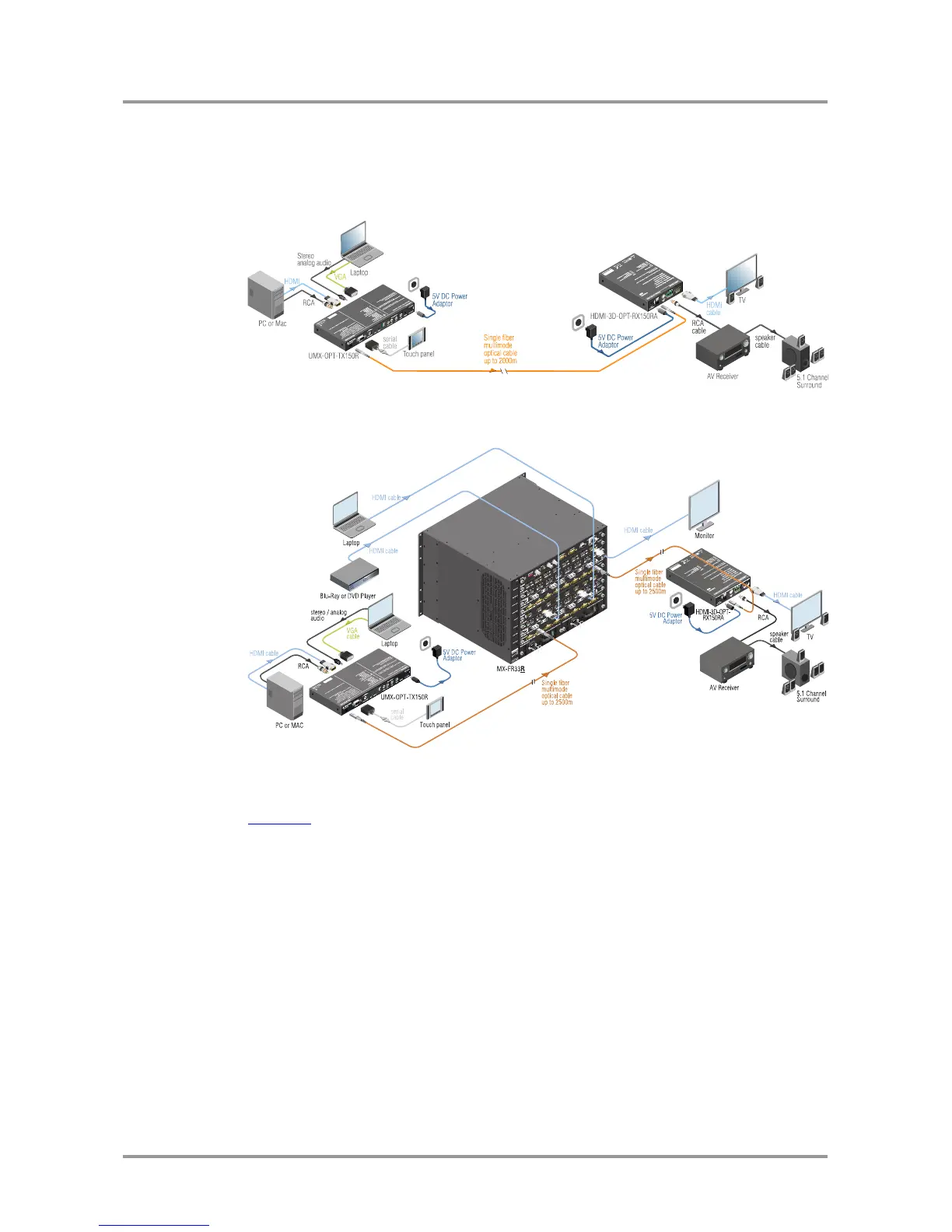

Some typical connection variations with the signal extender are shown on Figure 2-1 and
Figure 2-2.
Figure 2-1. Typical stand-alone application for UMX-OPT-TX150R
Figure 2-2. Integrated system application for UMX-OPT-TX150R
Info: For the compatible Lightware products please see the compatibility table on the
Lightware homepage.
2.4. Application examples
 Executive boardrooms
 Small classrooms
 Conference rooms, collaborative telepresence
 Multiroom video and audio control
 Home theatre systems

Lightware UMX-OPT-TX150R Specifications

General

Brand	Lightware
Model	UMX-OPT-TX150R
Category	Extender
Language	English
