UMX-OPT-TX150R
User’s Manual
Section 9. Software control – Using the Lightware Matrix Controller Page 61 / 107

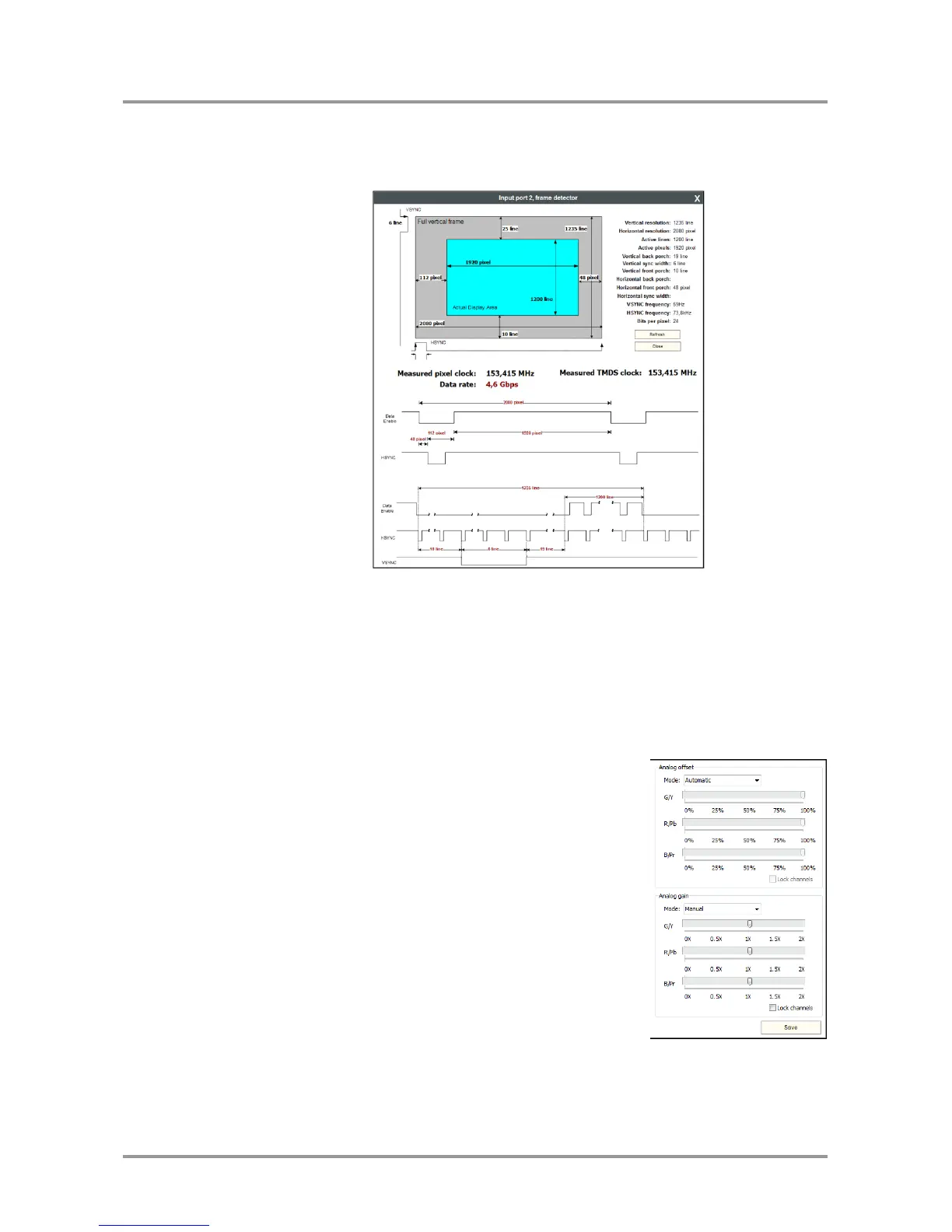

Frame detector
Click the frame detector button to view the measured detailed timings on the incoming
signal.
The dark grey zone is the blanking area (non-visible) and the cyan colored zone is the
picture (visible area).
Info: Resolution is given by the source devices always means the picture (visible area)
resolution and the refresh rate means the VSYNC frequency.
If the Refresh button is clicked on then the UMX-OPT-TX150R samples and calculates
the analog signal values again.
Click on the Close button to close the Frame detector window and step back to the
current input port settings window.
Info: The frame detector only gives information about video
signal from the selected input.
Analog gain / offset
Analog gain / offset window allows users to correct the gain
and the offset values if the automatic mode doesn’t give a
good result. Gain and offset settings method are the same:
Step 1. Select the manual mode if the settings need to be
changed.
Step 2. Tick the Lock channels if the three components
might change with the same extent.
Step 3. Use the mouse to drag the slider and set to the
desired position.
Step 4. Click on the Save button to store the changes.
Step 5. Click on the OK button when the confirmation message appears.
Step 6. Click on the Analog gain / offset button to close the window.
