Service Training

Page 4.2

Section 46

09.04

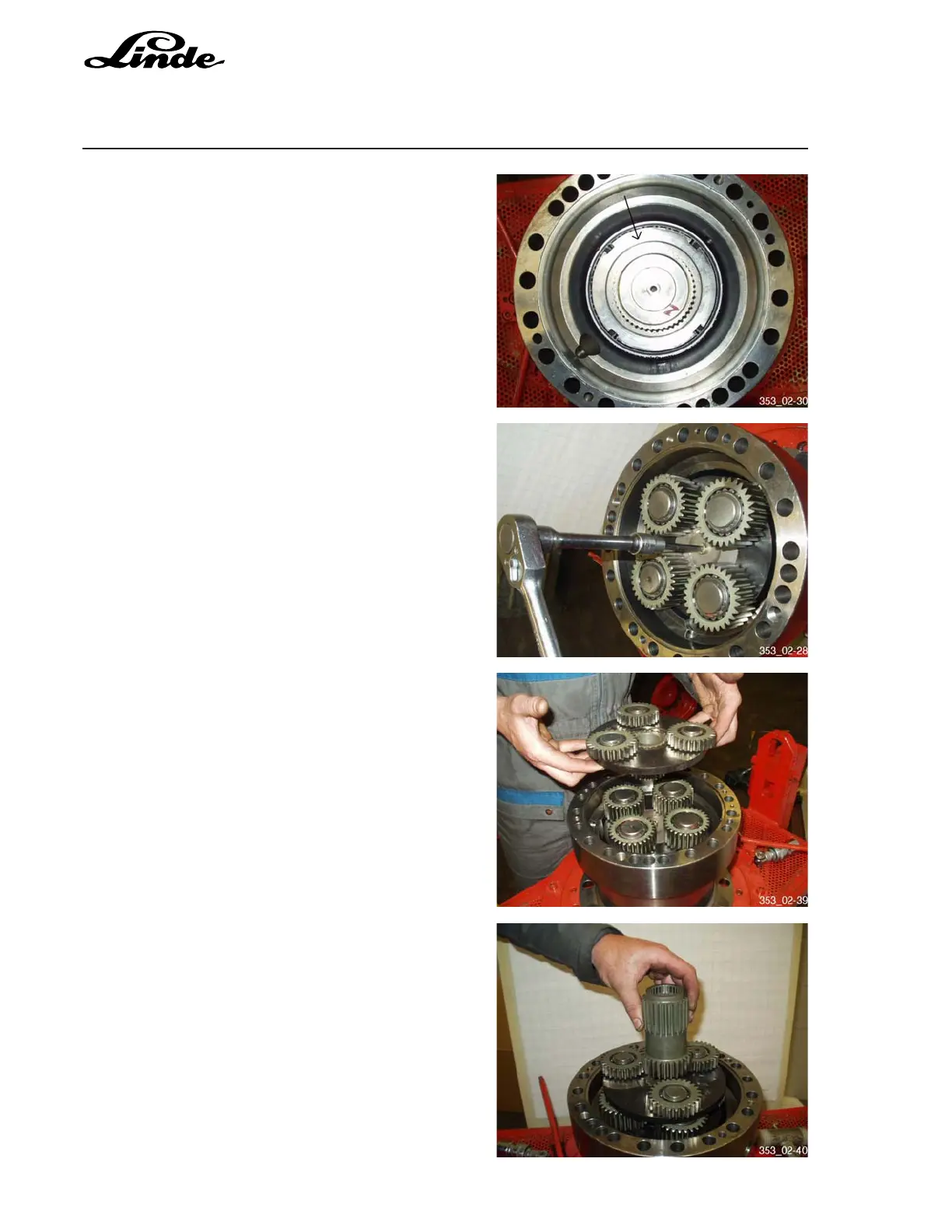

Cover groove nut with Loctite FK2 and tighten with

5300

+200

Nm.

Plug in planetary carrier 2, cover screw with Loctite FK2

and tighten with a tightening torque of 23 Nm.

Plug in planetary carrier 1.

Plug in pinion.
