Linde H 80 D - Central Electrical System

Page 34
Section 4.6
Service Training
09.04

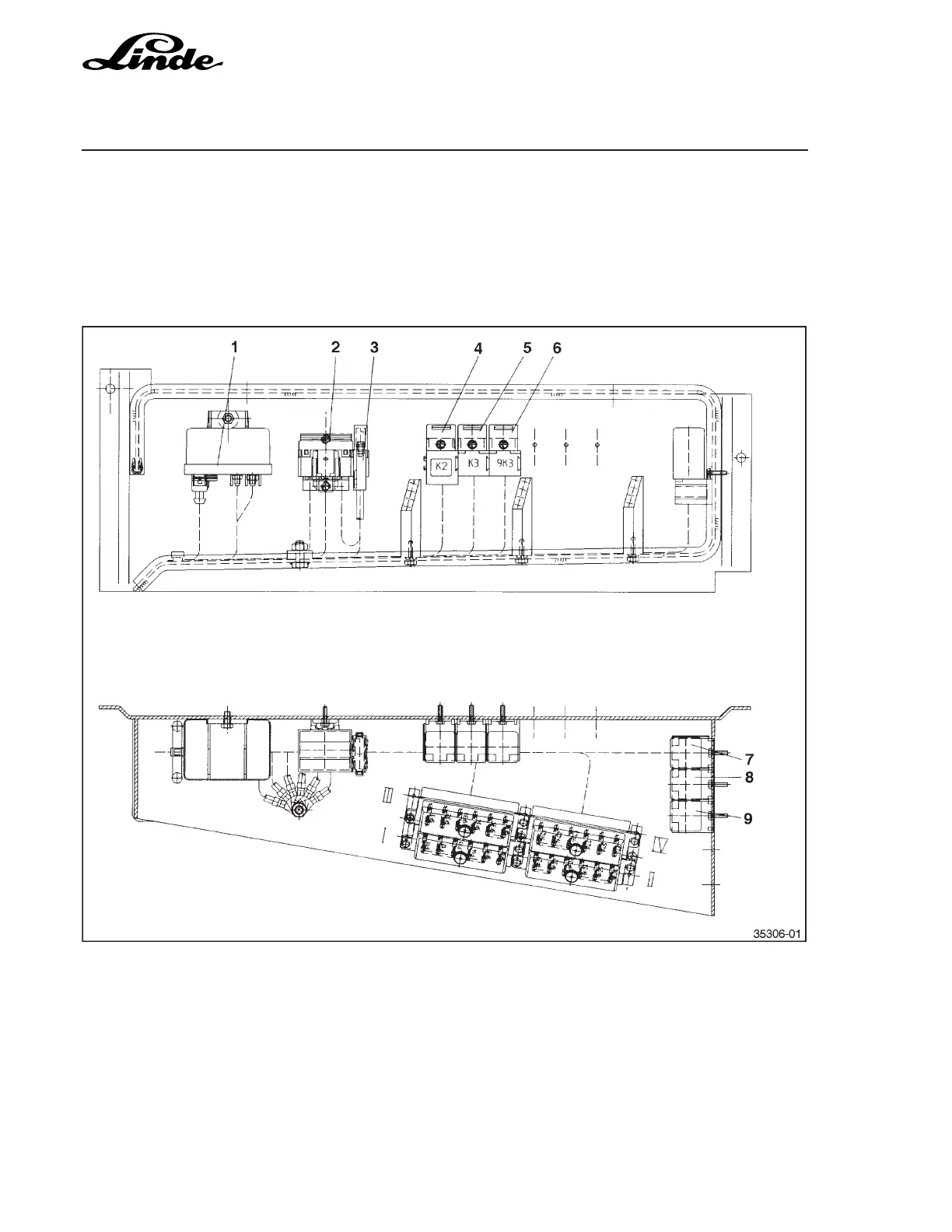

4.6.9 CENTRAL ELECTRICAL SYSTEM
The whole electrical system ist mounted on the left side of the truck behind a cover of the second foothold.
8 Interval relay 9K2
9 Flasher relay 5K1
I Fuse box
II Fuse box
III Fuse box
IV Fuse box
1 Preheating relay
2 Distributor plug (plus)
3 Preheating fuse 80 A
4 Starter relay
5 Signal converter preheating
6 Windsccreen wiper relay
7 Interval relay 9K1
