Linde H 80 D - Central Electrics of Series; Relay and Fuses of 353 -03 Diesel

Page 36
Section 4.6
Service Training
09.04
4.6.10 CENTRAL ELECTRICS OF SERIES 353 -03

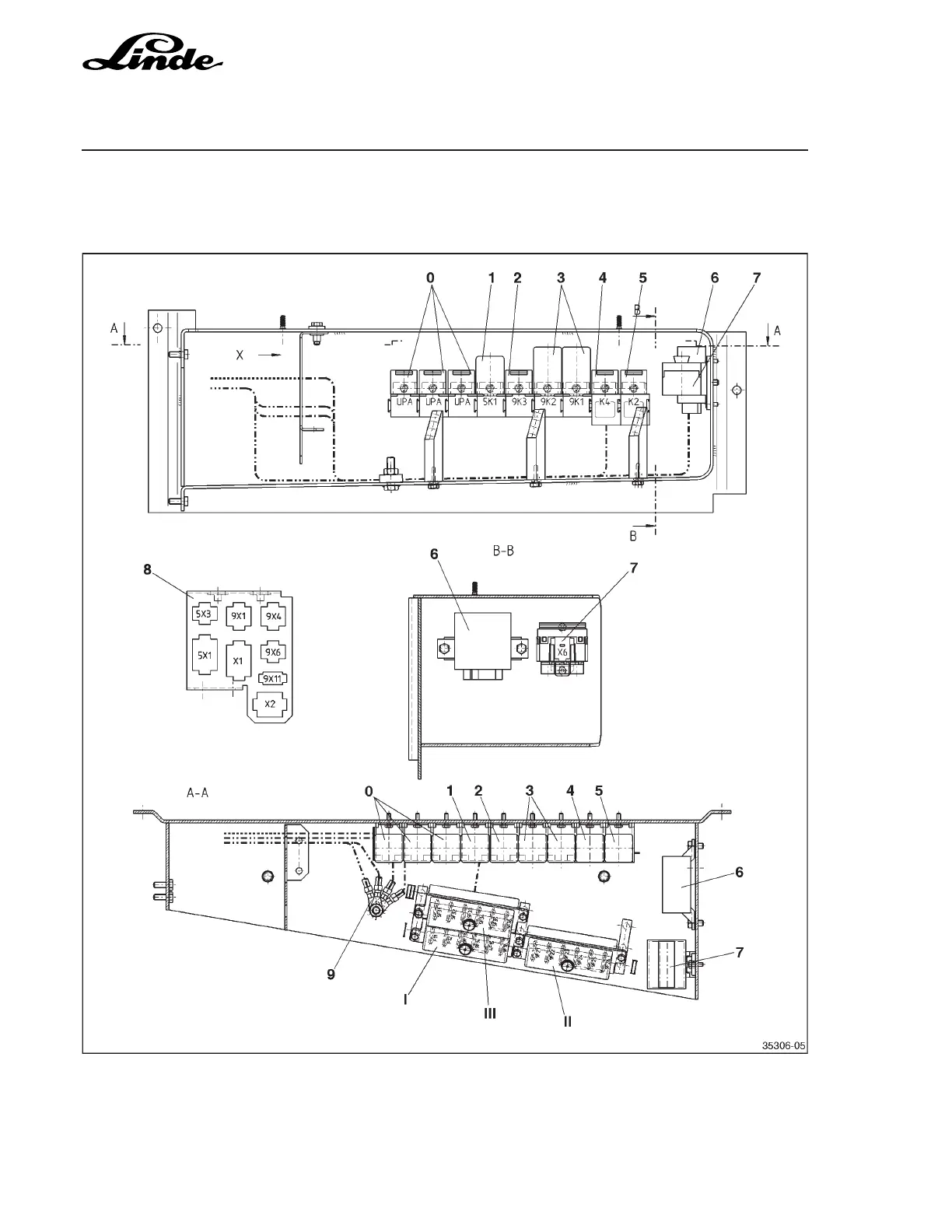

4.6.10.1 RELAY AND FUSES OF 353 -03 DIESEL
0 Relay for UPA
1 Indicator relay 5K1
2 Wiper relay 9K3
3 Interval relay 9K1/9K2
4 Relay K4 load relay
5 Starter relay K2
6 Control device for heater flange A1
7 Plus distributor
8 Plug for interfaces
9 Minus distributor
