Linde H 80 D - Power Steering Circuit Diagram

Service Training
Section 4.4
Page 2

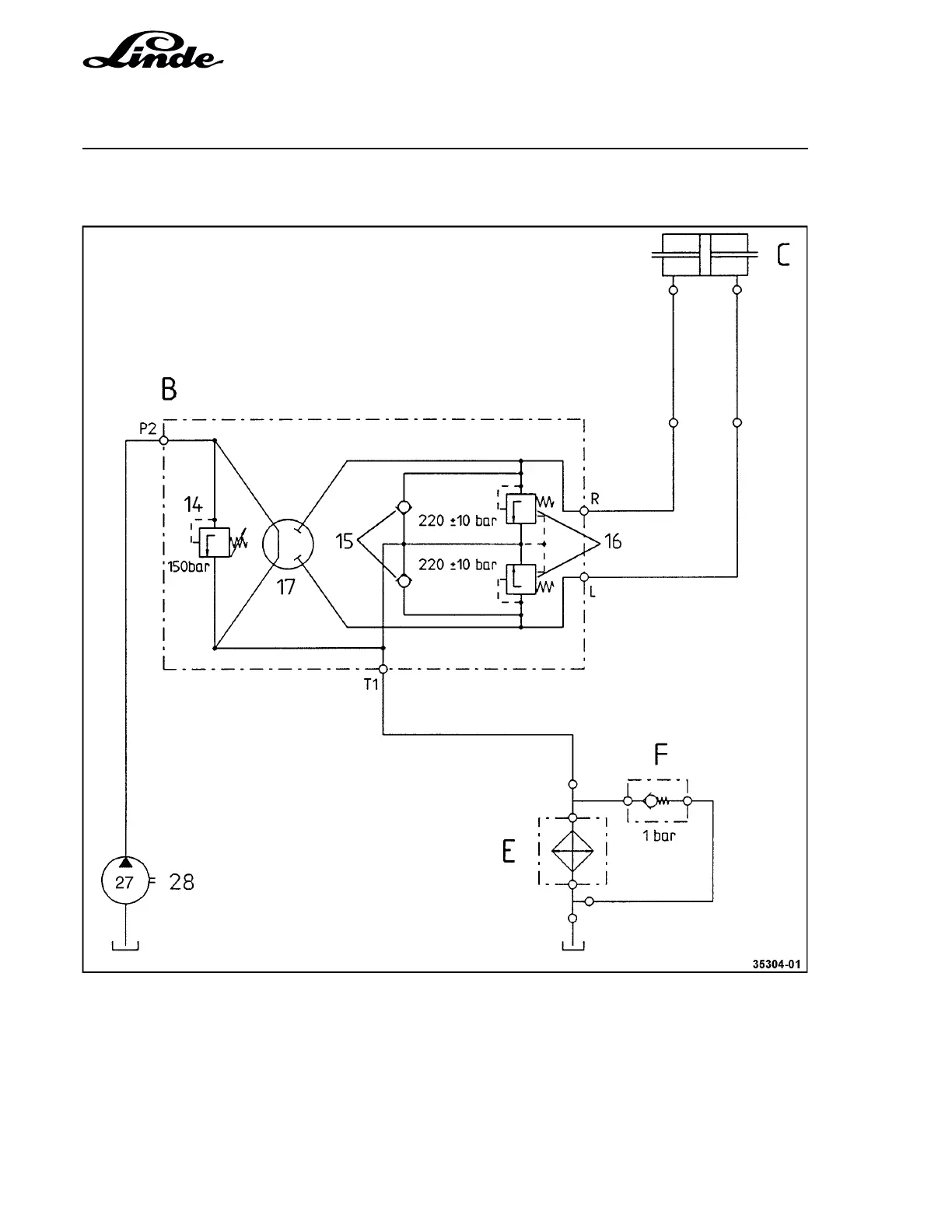

4.4.1 POWER STEERING CIRCUIT DIAGRAM
B Steering control valve assy. consisting of:
14 Pressure-relief valve
15 Make-up valve
16 Shock valve
17 Steering control valve
C Steering cylinder
E Oil cooler
F Cooler bypass valve, 1 bar
28 Gear pump, 27 cc/rev
