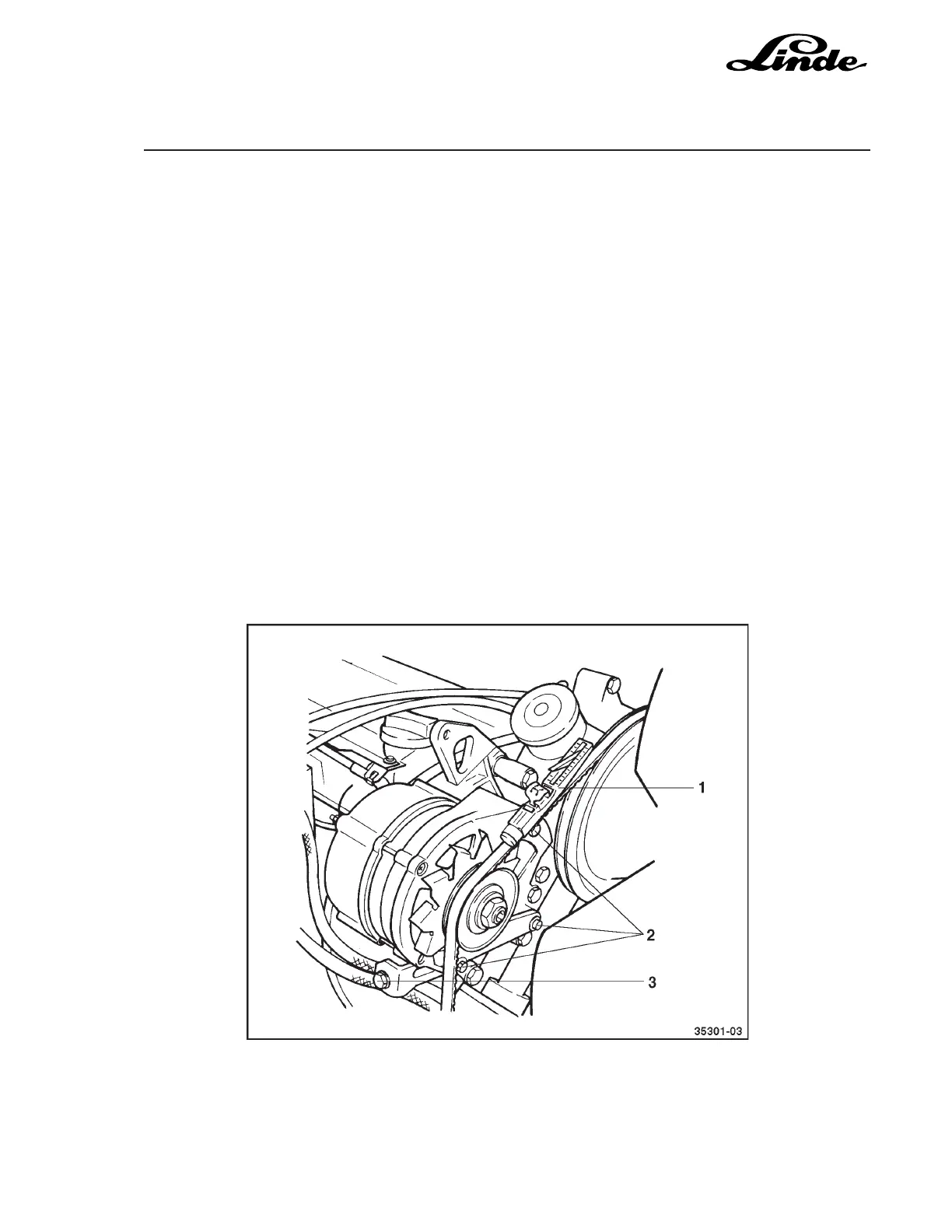

4.1.1.2 CHANGING AND TIGHTENING THE DRIVEBELT
CHANGING THE DRIVEBELT
- Slacken the alternator and tensioner fastening screws (2).
- Turn the tensioning screw (3) anti-clockwise, press the alternator in and remove the drivebelt.
- Check the pulley for wear, renewing it if necessary.
- Install a new drivebelt.
TIGHTENING THE DRIVEBELT
- Turn the tensioning screw (3) clockwise until the required tension is obtained.
- Check the tension with a gauge (1), Part No. 000 941 9435.
- Tighten the screws (2) again.
Settings:
Initial installation 400
+ 50
N
Check after 15 minutes Operation under load
and retighten the belt, if necessary 300 ± 50 N
With re-use 250 ± 50 N
