4 IC-ENGINED FORK TRUCK H 50/60/70/80, TYPE 353
4.1 ENGINE DRIVE
4.1.1 ENGINE MODEL BF6M 1012 E
4.1.1.1 ENGINE SPECIFICATIONS
Engine model BF6M 1012 E
Displacement 4790 cc
Power 85 kW at 2250 rpm
Opening pressure of injection valve 260 bar
Compression ratio 17,5 : 1
Compression 28 - 33 bar
Maximum difference in pressure 4 bar
Firing order 1 - 5 - 3 - 6 - 2 - 4
Valve clearence (cold) inlet: 0,3
+ 0,1
mm
outlet: 0,5
+ 0,1
mm
Lower idling speed 750
+ 50
rpm
Upper idling speed 2300
+ 50
rpm
Oil pressure at lower idling speed
and 125 °C oil temperature min. 0,8 bar

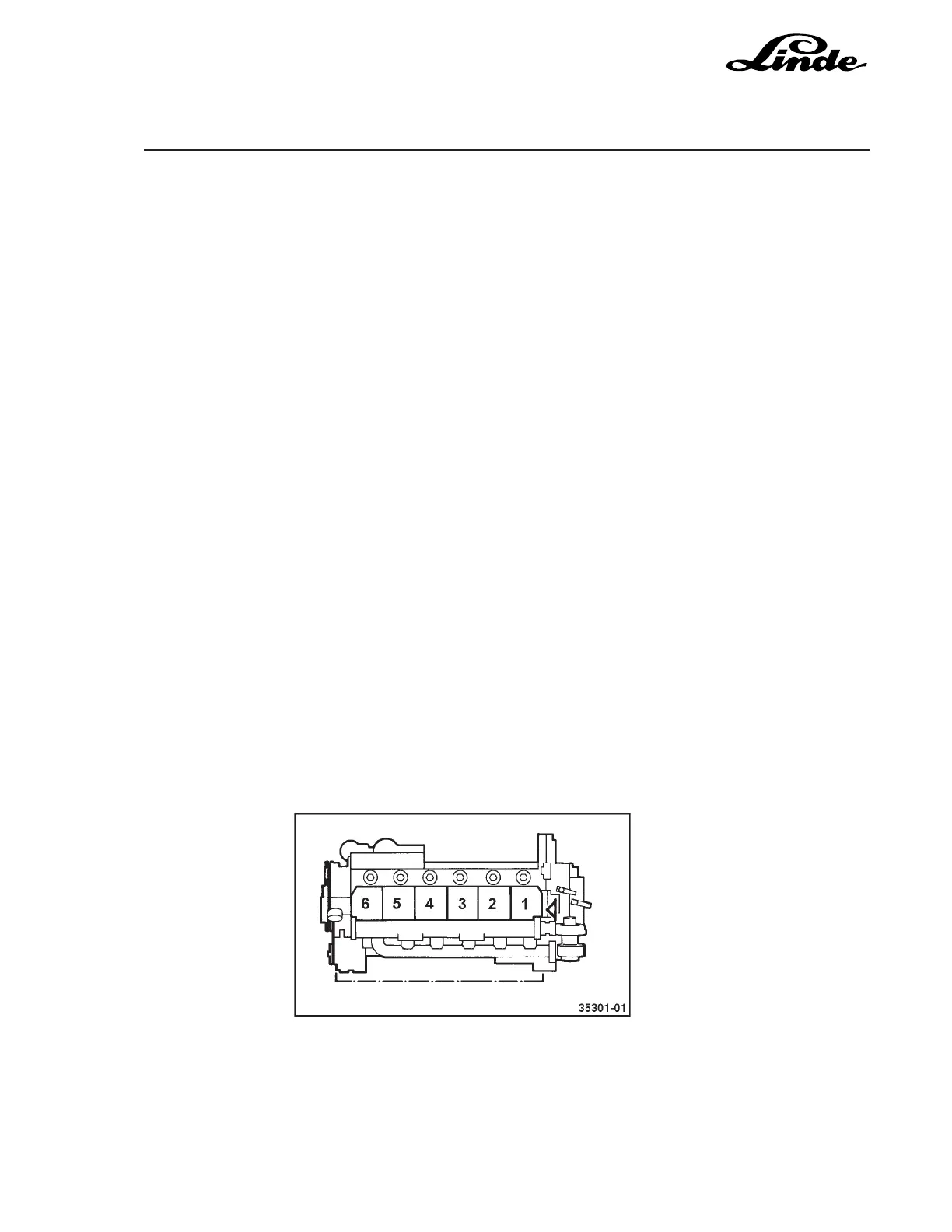

Count the cylinders beginning at the flywheel end.
