Linde H 80 D - Overhead Guard - Torsion Mounting

Service Training
Section 4.3
Page 2

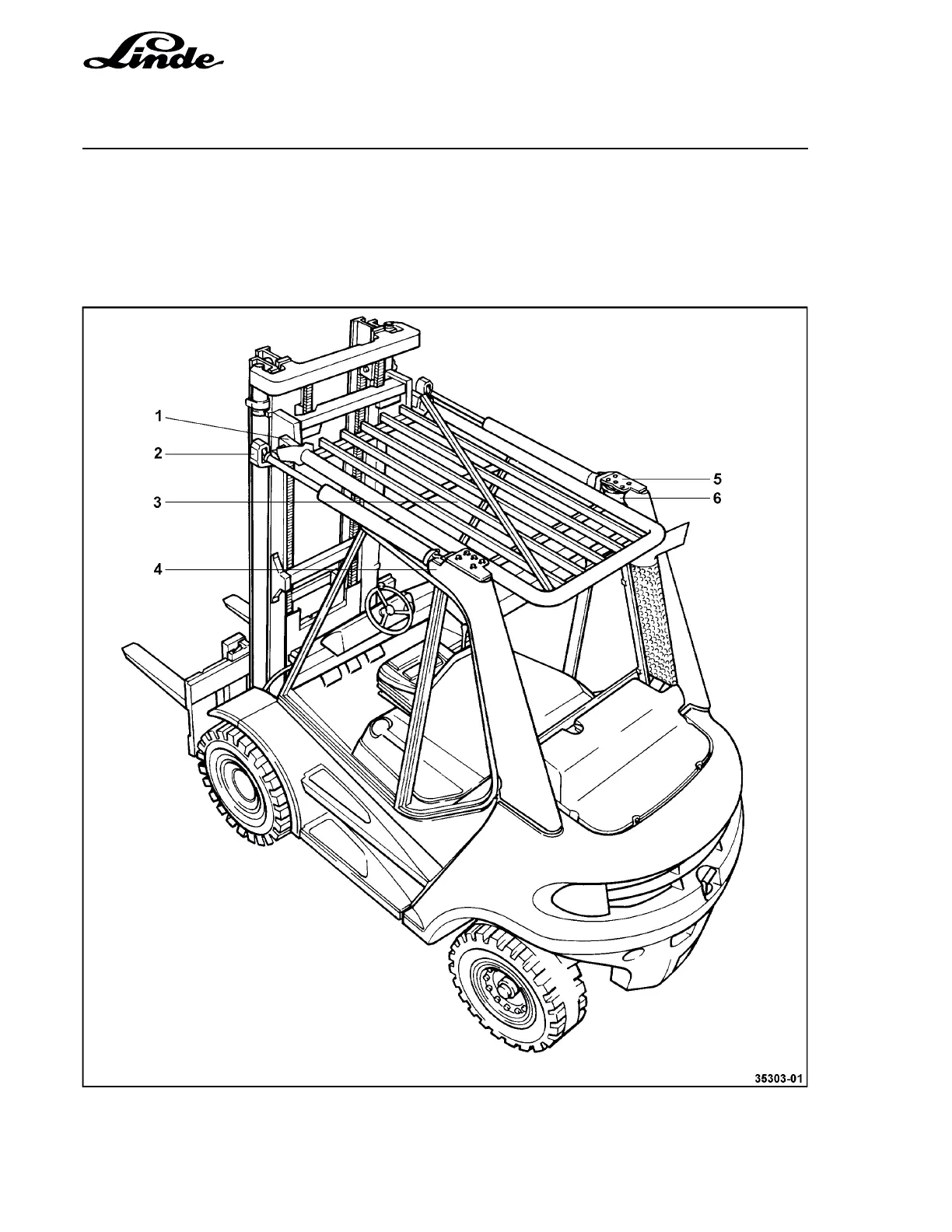

4.3.1 OVERHEAD GUARD - TORSION MOUNTING
The overhead guard is fastened to a cross member at the top of the mast so that it follows the mast when
tilted. At the rear supports, the overhead guard is guided in two adjustable rollers. This type of roof
construction increases the torsion stiffness of the mast and it is called a torsion mounting.
