4.1.2.9.2 REPLACEMENT OF THE INJECTION PUMP
This repair method is intended for a replacement of the injection pumps only.
Commercially available tools:
Claw grip wrench 8018
Torx tool kit 8189
Special tools:
Press-on device for control rod 100 830
Extractor pulling device 150 800
Extractor pulling device for
injection valve 110 030

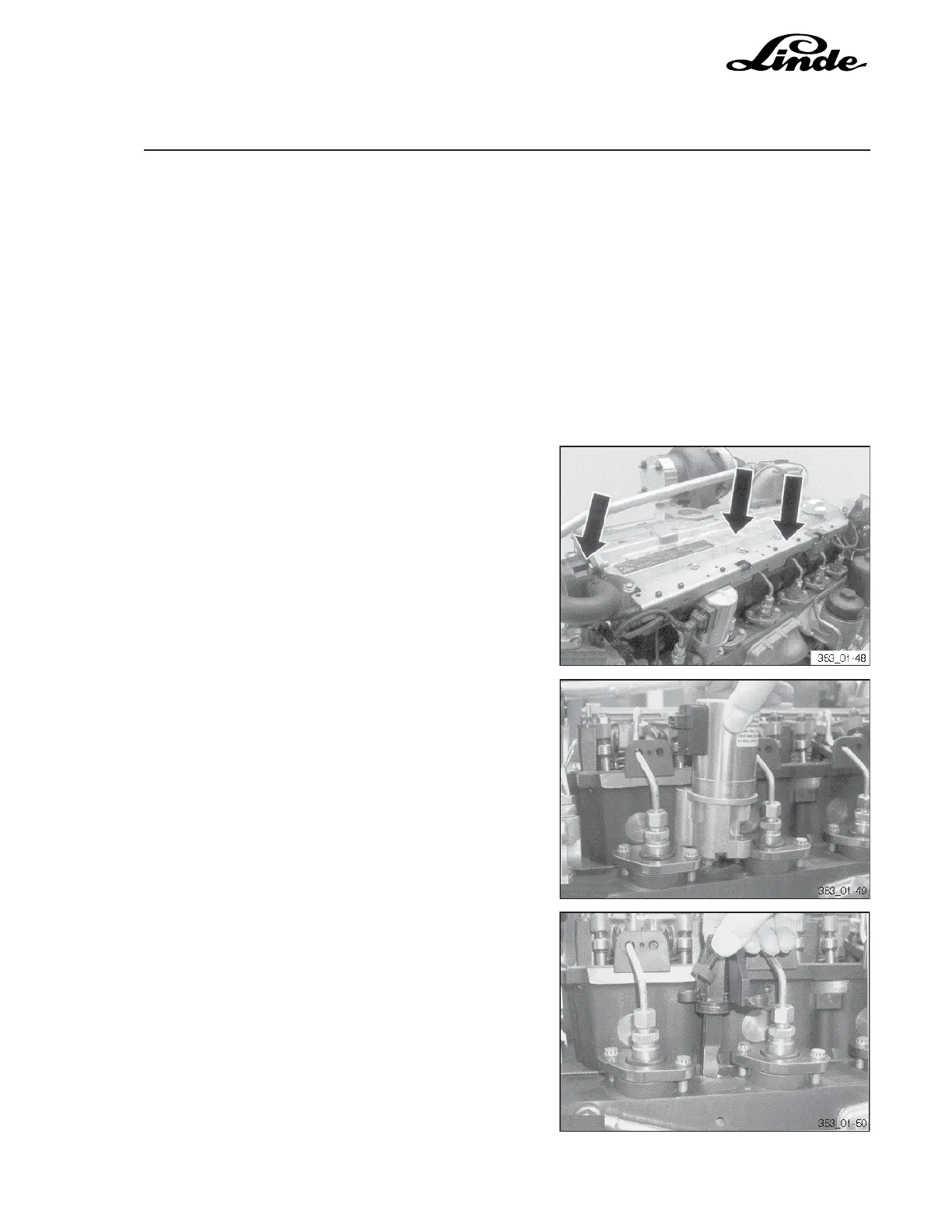

- Remove pressure control valve and inspection cover.
Pull off cable connector from cut-off solenoid, governor
and temperature sensor. Swivel holding plate sideways.
- Remove engine cut-off device or lock cover.
- Press control rod into stop position using the stop lever.
Insert press-on device for control rod 100 830 and
tighten by bolts.
