Page 38
Section 4.1
Service Training
09.06

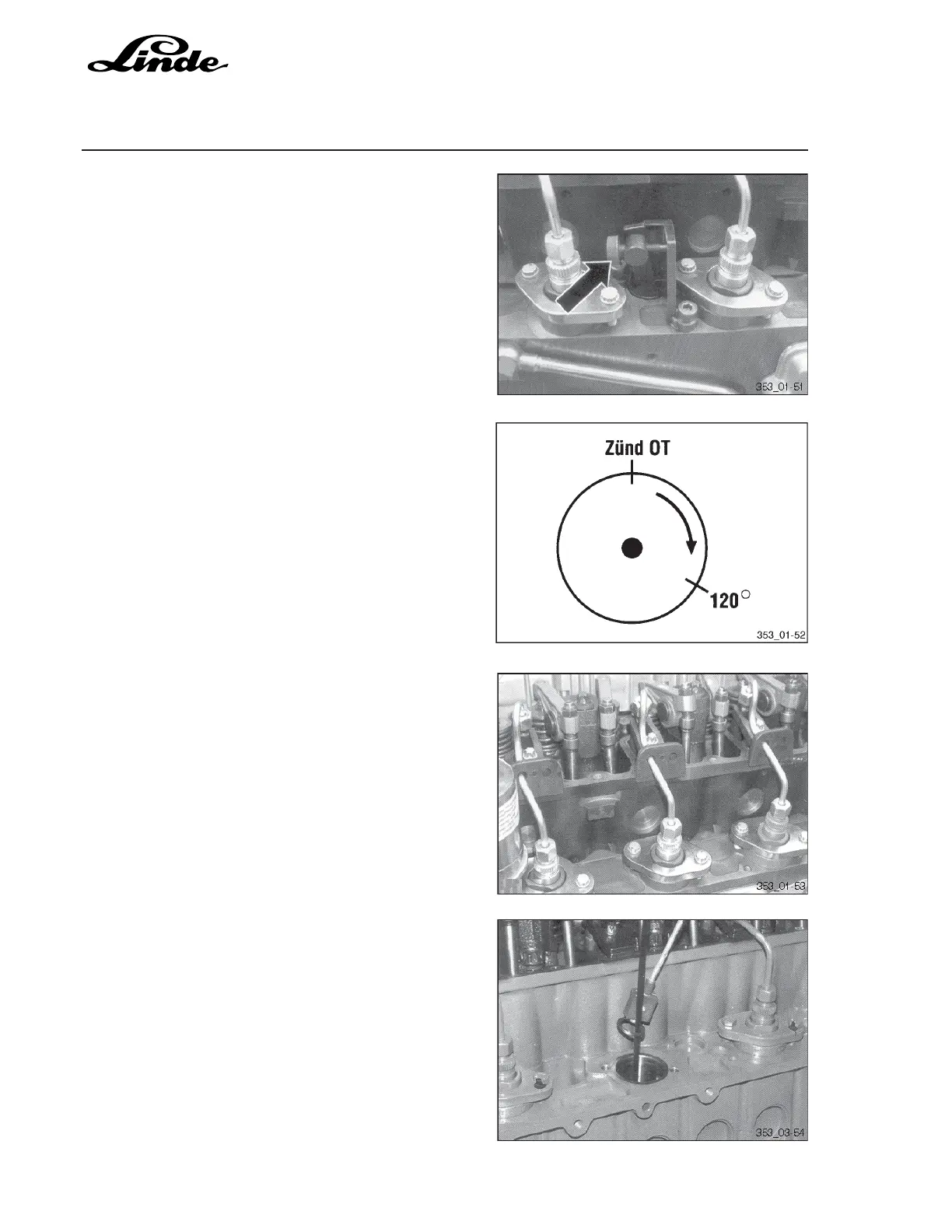

- Press control rod into stop position using the knurled
lock bolt.
- Use press-on device for control rod 100 830.
NOTE: Tighten knurled lock bolt finger tight.
- Set cylinder of the injection pump to be removed to firing
TCD.
- Turn crankshaft by approx. 120° opposite to the direction
of rotation of the engine.
(Zünd OT - firing TCD)
NOTE: As viewed in direction of the flywheel.
- Remove the corresponding injection line, injection pump
and injection valve.
NOTE: Use claw grip wrench 8018 for the injection
line.
Use extractor pulling device 150 800 with
puller 110 030 for injection valve if jammed.
Pull out O-ring if necessary, using extractor
120 680.
- Carefully extract shim with bar magnet..
