Linde H 80 D - Reduction Gearbox GR 80 -06 with Multiple Disc Brake

Service Training
Page 4.2
Section 40
09.04

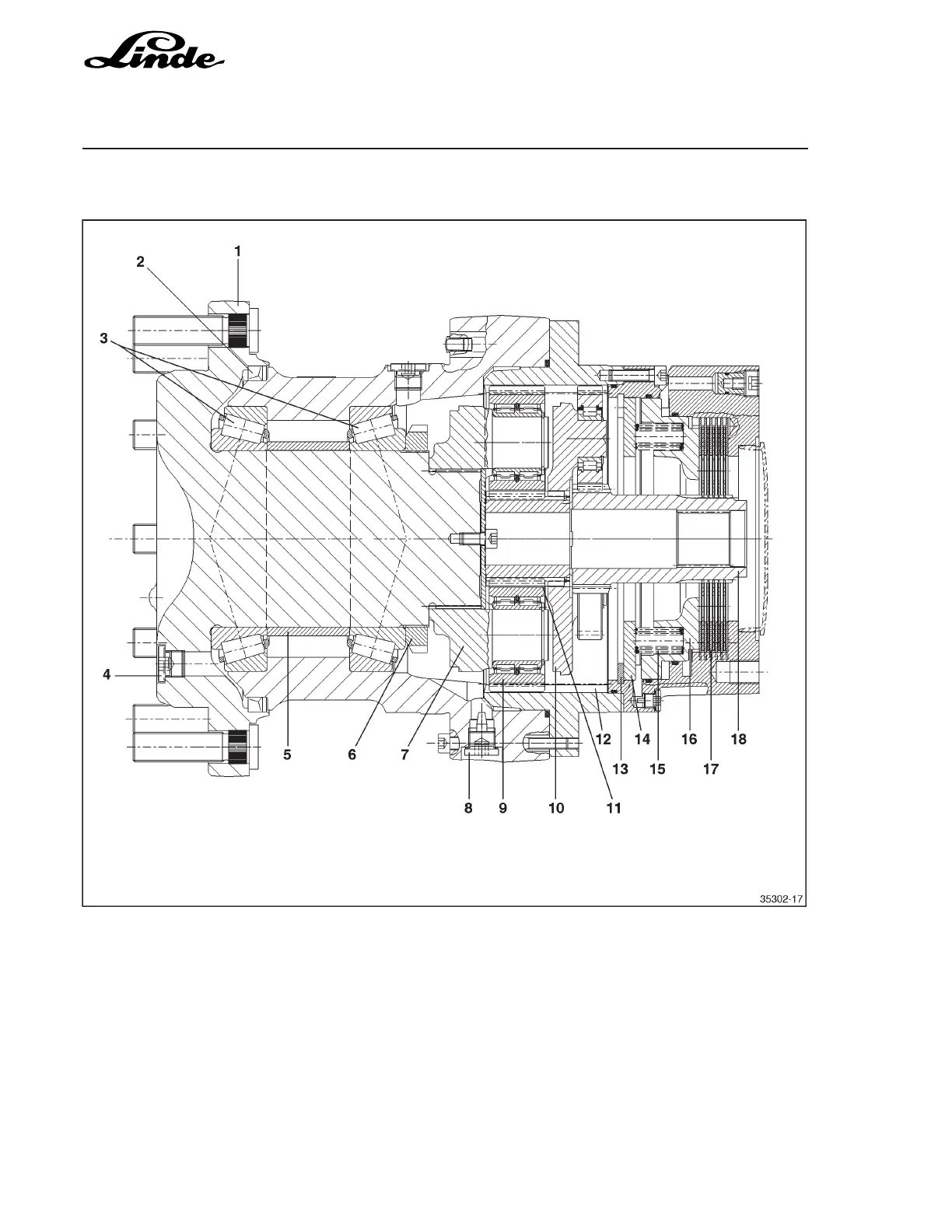

4.2.4.4 REDUCTION GEARBOX GR 80 -06 WITH MULTIPLE DISC BRAKE
1 Wheel hub
2 Shaft seal
3 Tapered roller bearing
4 Plug
5 Pretensioning ring
6 Slotted nut
7 Planetary carrier II
8 Drain plug
9 Planetary gears
10 Planetary carrier I
11 Sun gear
12 Internal gear
13 Circlip
14 Pretensioning plate
15 Brake springs
16 Brake piston
17 Brake discs
18 Pinion
